High Speed Servo-motor Control Automatic Packing Machine adopts servo motor, improved the control accuracy, reducing waste.
| Parameters of the Pillow Type Automatic Packing Machine |
| Max width of film |
560mm |
| Packaging range |
L:53~300mm, W:20~100mm, H:10~70mm |
| Packing speed |
30-110Bags/min |
| Category of film |
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
4.6KW single phase 220V |
| Overall dimension L×W×H |
5700×1050mm×1700mm |
| Weight |
About 1000kg |
Application of packaging machine:
Single Piece product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, trowels, cotton wool.
Group packaging:
Waffles, steam bread, meat chops, bakery, soaps, sponges, biscuits with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packaging spoon, fork, knife, napkin, toothpick, etc.

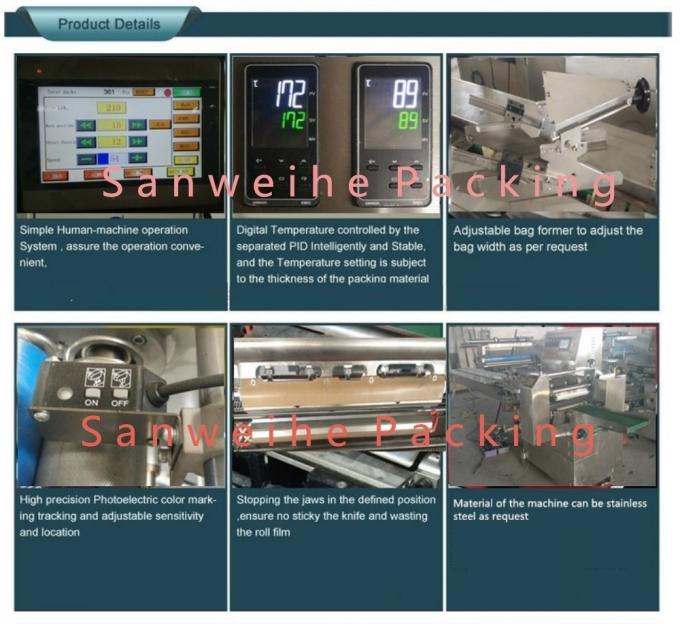

Features of Pillow Type Automatic packaging Machine :
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former
We have both the button controlled flow packing machine and the PLC touch screen controlled flow packing machine
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machine
