Film enters the former from below the product. This ensures a smooth product transfer and secure product handling of multipack and flexible products, not possible on a typical Form-Fill-Seal type Packing Machine.

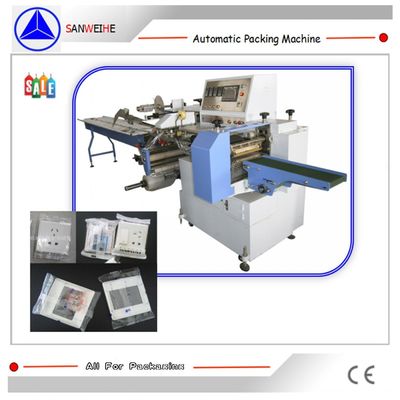

| Parameters of the Pillow Type Automatic Packing Machine |
| Max width of film |
450mm |
| Packaging range |
L:53~300mm, W:20~100mm, H:5~70mm |
| Packing speed |
30-180Bags/min |
| Category of film |
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
4.6KW single phase 220V |
| Overall dimension L×W×H |
5700×960mm×1480mm |
| Weight |
About 1000kg
|
Application of Forming-filling-sealing Packing machine:
Single Piece product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, trowels, cotton wool.
Group packaging:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.
Features of Automatic forming-filling-sealing packing Machine :
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former
We have both the button controlled flow packing machine and the PLC touch screen controlled flow packing machine
