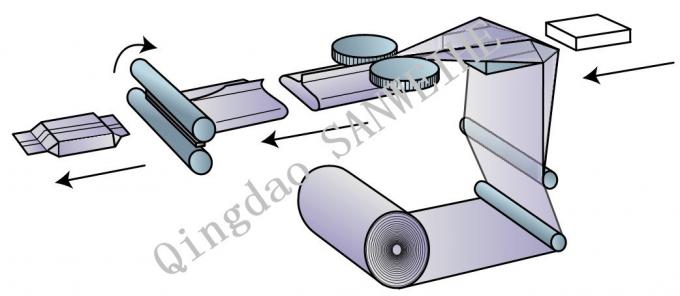

Film enters the former from below the product. This ensures a smooth product transfer and secure product handling of multipack and flexible products, not possible on a typical flow wrapper.

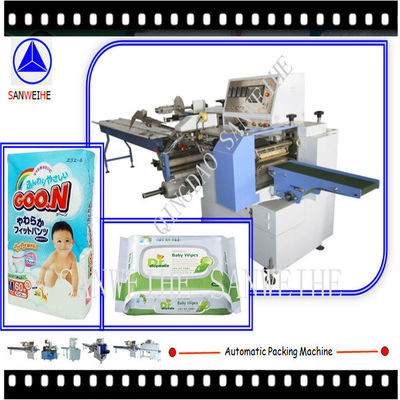

| Parameters of the Pillow Type Automatic Packing Machine |
| Max width of film |
450mm |
| Packaging range |
L:53~300mm, W:20~100mm, H:5~70mm |
| Packing speed |
30-180Bags/min |
| Category of film |
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
4.6KW single phase 220V |
| Overall dimension L×W×H |
5700×960mm×1480mm |
| Weight |
About 1000kg
|
Application of the packing machine:
Single Piece product packaging:

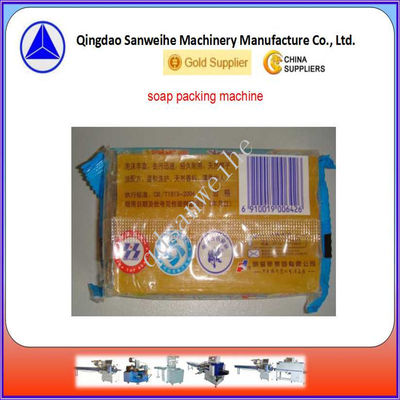

Bread, chocolate enrobed cheese bar, soaps, popsicles, cookies, waffles, trowels, cotton wool.
Group packaging:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

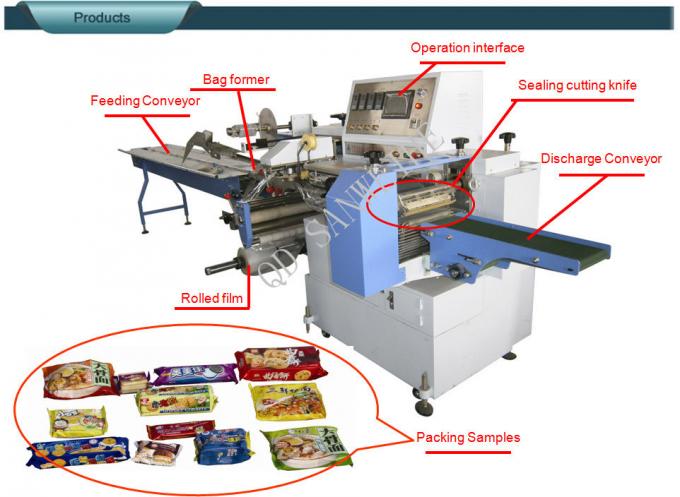

Features of Pillow Type Automatic Packing Machine
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former
We have both the button controlled flow packing machine and the PLC touch screen controlled flow packing machine
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products
Our Services
We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine
We also provide customized products according to customer's request
FAQ :
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as OPP/PE film,CPP/PE, OPP/ALU/PE
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free
