High Speed Servo-motor Control Automatic Packaging Machine adopts servo motor, improved the control accuracy, reducing waste.
Application of packaging machine:
Single Piece product packaging:

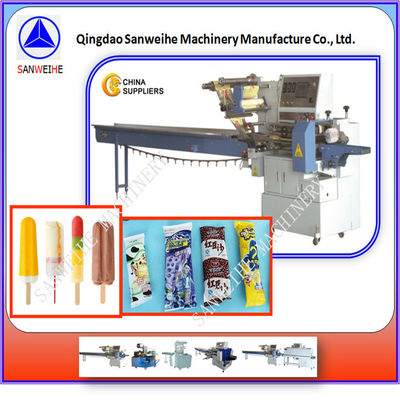

Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, trowels, cotton wool.
Group packaging:

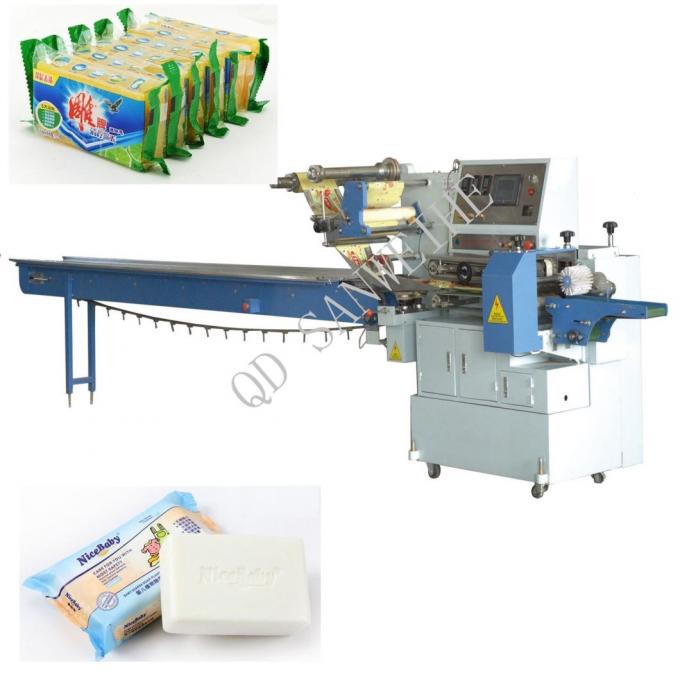

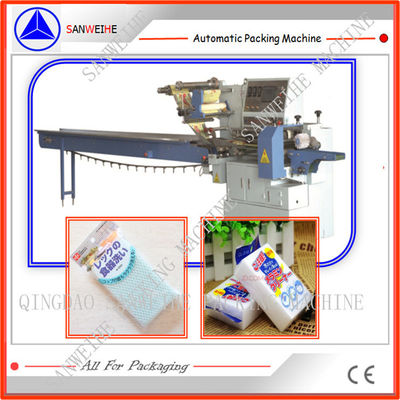

Waffles, steam bread, meat chops, bakery, soaps, sponges, biscuits with tray etc.
Non standard products (customization):

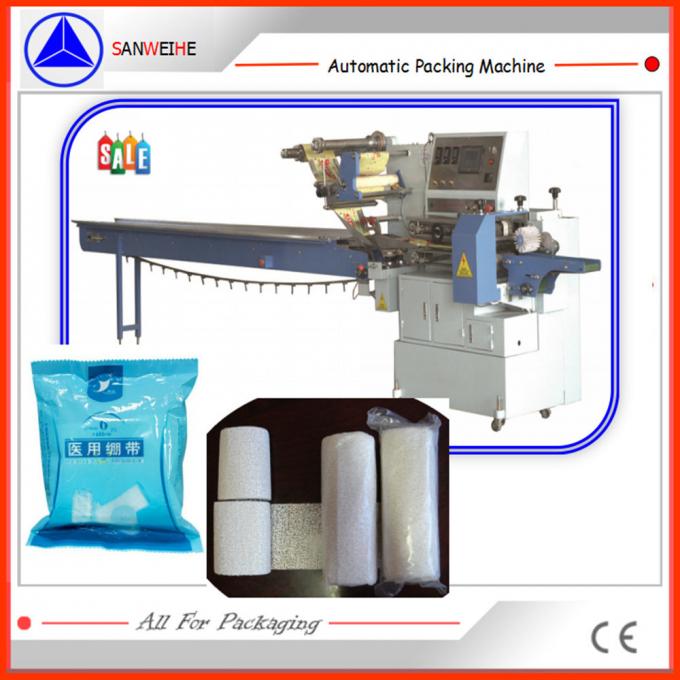

Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.
Features of Pillow Type Automatic packaging Machine :
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former
We have both the button controlled flow packing machine and the PLC touch screen controlled flow packing machine
| Parameters of the Pillow Type Automatic Packing Machine |
| Max width of film |
590mm |
| Packaging range |
L:53~300mm, W:20~100mm, H:5~70mm |
| Packing speed |
30-180Bags/min |
| Category of film |
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
4.6KW single phase 220V |
| Overall dimension L×W×H |
5700×960mm×1480mm |
| Weight |
About 1000kg |
Packing Process:

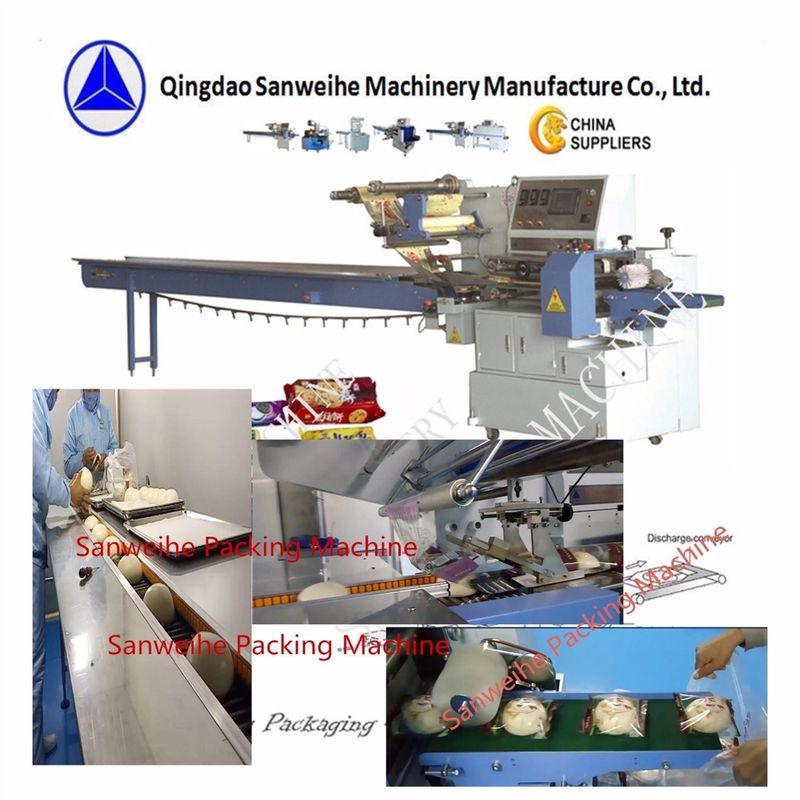

Product is placed on the in-feed conveyor. As the in-feed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a fin-seal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the end-seals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machine
Services of our company:
We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We provide related spare parts of our packing machine
We also provide customized products according to customer's request
