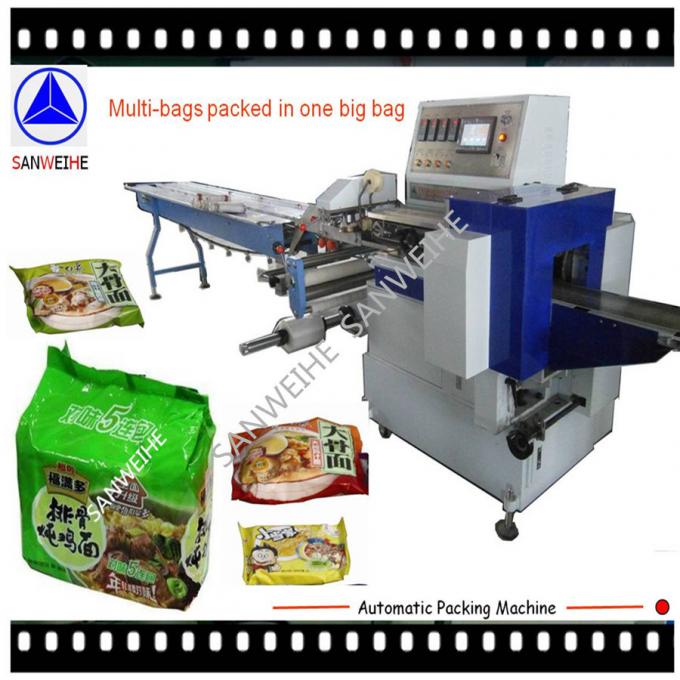

Reciprocating Type (Box Motion) Packaging Machinery is Specially designed for large product and heavy duty film packaging, this packaging machinery has a height of 120 mm, a width of 250 mm, and a packaging film width of 720 mm, The box motion makes the dwell time of film sealing longer so that the seal is much tight and firm than normal rotary sealing.
Applications of packaging machinery:
Applicable for packing various solid regular objects, such as mooncake, bread, biscuits, candies, snow cakes, custard cakes, chocolates, instant noodles, medicines, commodities, hardwares, carton, trays and etc.
Main Parameters of the packaging machinery:
| |
SWWF-590 |
SWWF-800 |
| Film width |
Max 560mm |
Max 760mm |
| Bag length |
120-450mm |
120-450mm |
| Bag width |
50-160mm |
50-200mm |
| Product height |
10-80mm |
10-110mm |
| Film roll diameter |
Max 320mm |
Max 320mm |
| Packaging speed |
20-80bag/min |
20-80bag/min |
| Packaging materials |
OPP, PVC, OPP/CPP, PT/PE ALU-FILM |
OPP, PVC, OPP/CPP, PT/PE ALU-FILM |
| Power |
220V, 50/60Hz, 3.6KW |
220V, 50/60Hz, 3.6KW |
| Machine size |
(L)5060× (W)1050× (H)1750 |
(L)5060× (W)91250× (H)1750 |
| Machine weight |
860Kg |
920Kg |
Features Of the Packaging machinery:
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Human-machine interface, easy parameter setting.
3. Self failures diagnosis, clear failure displaying.
4. High sensitivity photocell, digital input of cutting and sealing position for extra accuracy.
5. Separate PID temperature control, suitable for packing different materials.
6. Reciprocating sealing makes the seal firmer, without wearing the cutters.
7. Sealing with gusseting device makes the bag better looking, improving the product level.
8. Positioning stopping function, not adhesive to cutters and no waste of packing films.
9. Simple driving system, more reliable and more convenient maintenance.
10. All controlled by software, convenient for adjusting and technical upgrading.
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machine
Services of our company:
We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We provide related spare parts of our packing machine
We also provide customized products according to customer's request
