High Speed Automatic Package Machinery (SWSF-450)

Large Image : High Speed Automatic Package Machinery (SWSF-450)

Product Details:

Brand Name:	SANWEIHE
Model Number:	SWSF-590

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	wooden box
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union

Contact Now

High Speed Automatic Package Machinery (SWSF-450)

Description

Model NO.:	SWSF-590	Material Type:	Solid
Packaging:	Bag Packing	Packaging Material:	Film
Usage:	Product Bag Packing	Keywords:	Packing Machine
Keyword:	Wrapping Machine	Transport Package:	Wooden Box Packing
Specification:	570010501700mm	Trademark:	SANWEIHE
Origin:	Qingdao China	HS Code:	84224000
Supply Ability:	Production Capacity: 12 Sets/ Month	Automatic Grade:	Automatic
Application:	Cleaning, Detergent, Skin Care Products, Vegetable, Fruit, Fish, Meat	Type:	Forming Filling Sealing Machine
Forming Species:	Film Packing	Forming Function:	Forming, Filling, Seal
Driven Type:	Electric	Customization:	Available \| Customized Request
Highlight:	High Speed Automatic Package Machinery , SWSF-450 Automatic Package Machinery , 5700mm Automatic Package Machinery

Product Description

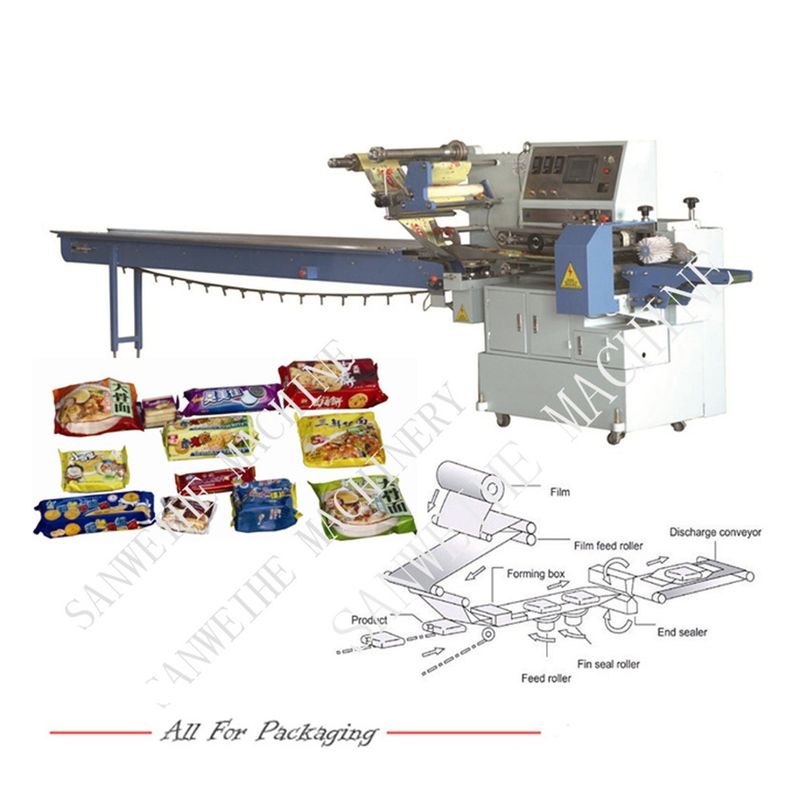

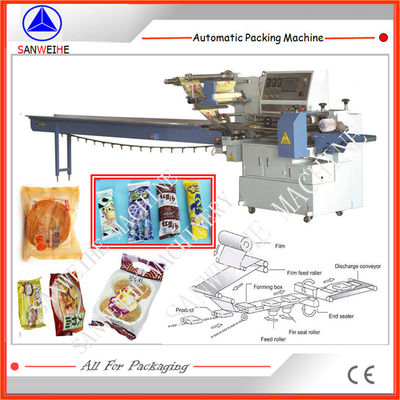

SWSF-590 High Speed Automatic Flow Package Machinery
SWSF-590 High Speed Servo-motor Control Automatic Package Machinery adopts servo motor, improved the control accuracy, reducing waste. It is kind of flow package machinery.

Application of the package machinery:
Piece-product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, ice trowels, cotton wool.

Group packaging:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.

Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

Features of the automatic packing machine:

Food packing machine is based controlling by PLC for a more stable and reliable system with less trouble.

Digital display with package length,speed and temperature adjustableseparately,easy and accurate to use.

Two-way tracking for accurate sealing and cutting.

Position shutdown and automatic opening-closing device for longitudinalsealing ,ensuring no harm to the packing films.

Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.
Packing parameter with many products could be set, Drawing out the relevant data from memory and the machine will be operate according to these data.

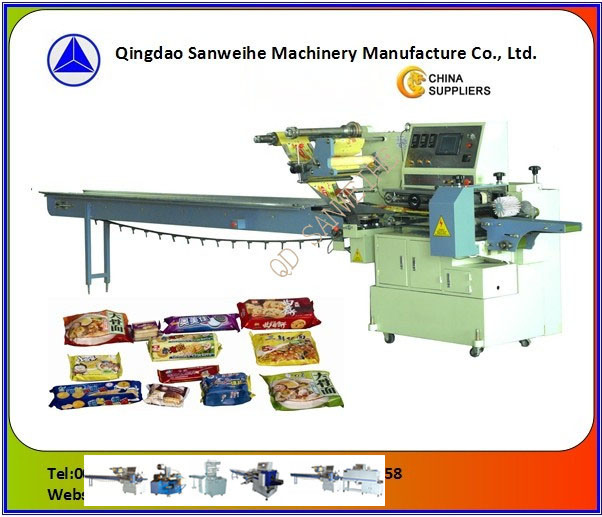

High Speed Automatic Package Machinery (SWSF 450)

Why choose us:
1.     We are manufacture but not trade company
2.     We have professional staff who can advise you the suitable choice for your specific need
3.     Our professional workers will make the perfect product for you
4.     Well trained and experienced staff will answer your inquiry timely
5.     We provide competitive price and fine quality products

Our Services

We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine
We also provide customized products according to customer's request

FAQ :

Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as OPP/PE film,CPP/PE, OPP/ALU/PE
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free

Parameters of the automatic packing machine
Max width of film	560mm
Packaging range	L:53~300mm, W:20~100mm, H:10~70mm
Packing speed	30-120 packs/min
Category of film	Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE
Power of main motor	1.5KW
Power of electrical	2.5KW
Total power	4.6KW single phase 220V
Overall dimension L×W×H	5700mm×1050mm×1700mm
Weight	About 1000kg
