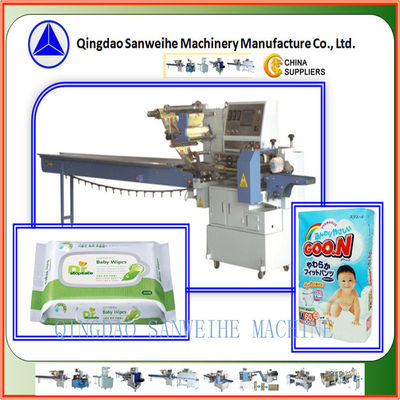

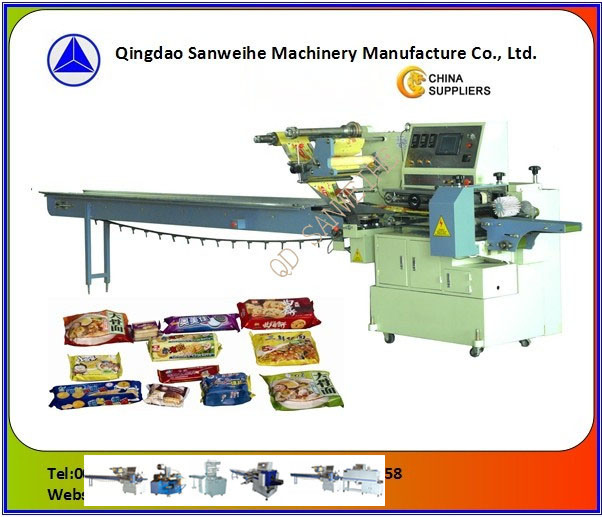

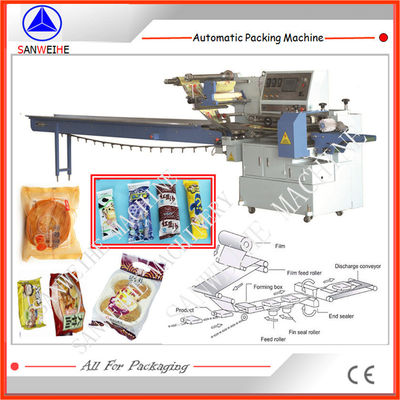

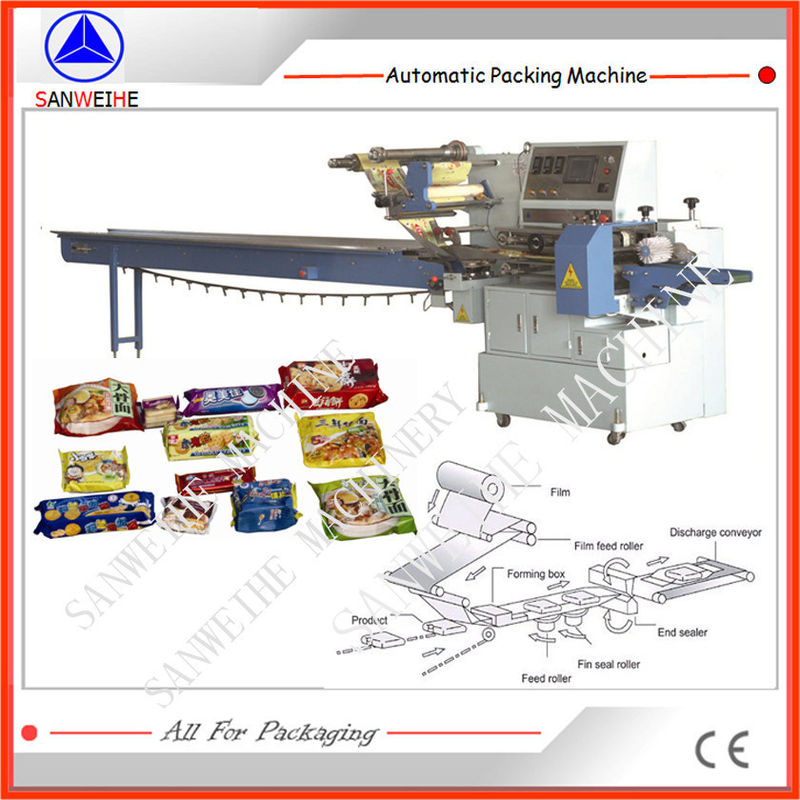

SWSF-450 High Speed Servo-motor Control Automatic Packing Machine adopts servo motor, improved the control accuracy, reducing waste.
Application of the wrapping packing machine:
Piece-product packaging:

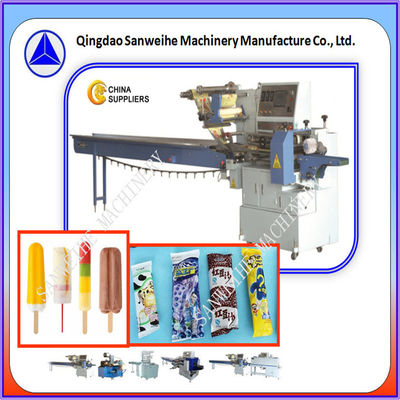

Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, ice trowels, cotton wool.
Group packaging:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):

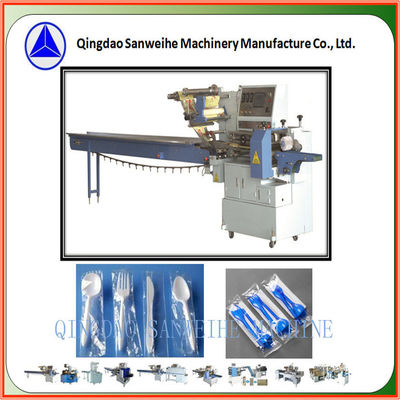

Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.
Features of the automatic wrapping packing machine:
food packing machine is based controlling by PLC for a more stable and reliable system with less trouble.
Digital display with package length,speed and temperature adjustableseparately,easy and accurate to use.
Two-way tracking for accurate sealing and cutting.
Position shutdown and automatic opening-closing device for longitudinalsealing ,ensuring no harm to the packing films.
Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.
Packing parameter with many products could be set, Drawing out the relevant data from memory and the machine will be operate according to these data.
| Parameters of the automatic wrapping packing machine |
| Max width of film |
450mm |
| Packaging range |
L:53~300mm, W:20~100mm, H:5~70mm |
| Packing speed |
30-180Bag/min |
| Category of film |
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
4.6KW single phase 220V |
| Overall dimension L×W×H |
5700mm×1050mm×1700mm |
| Weight |
About 1000kg
|
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products
Our Services
We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine
We also provide customized products according to customer's request.
FAQ :
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as OPP/PE film,CPP/PE, OPP/ALU/PE
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free
