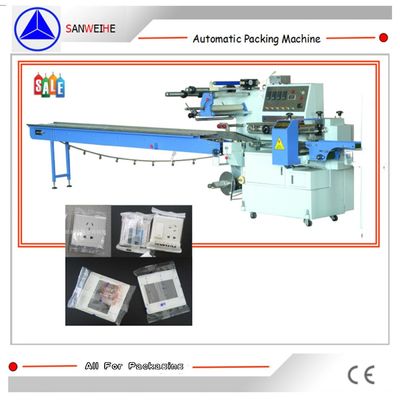

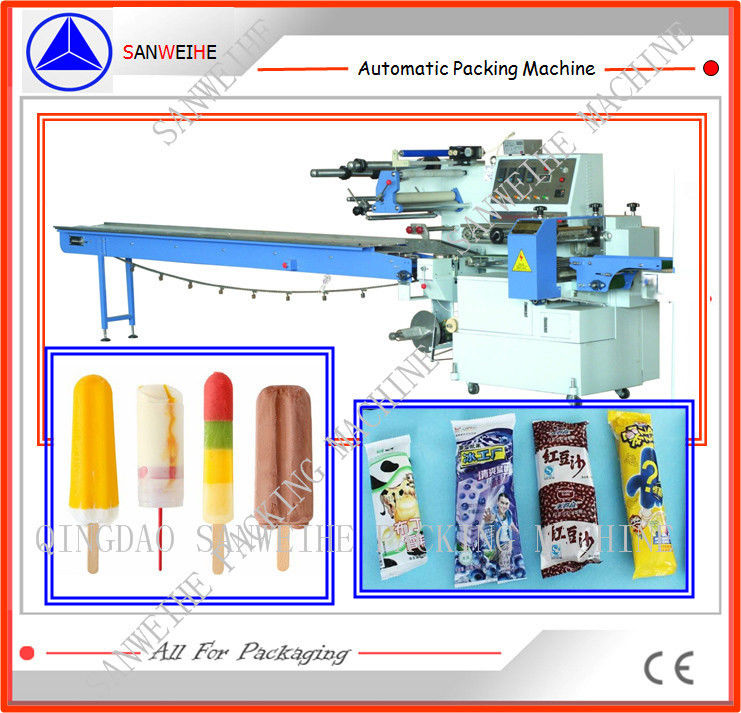

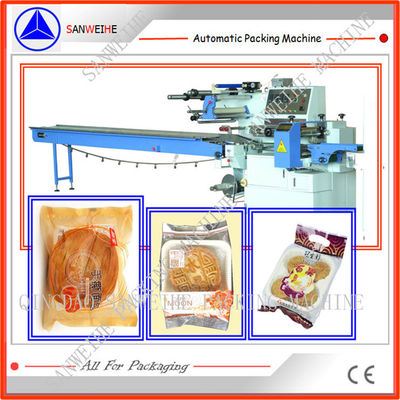

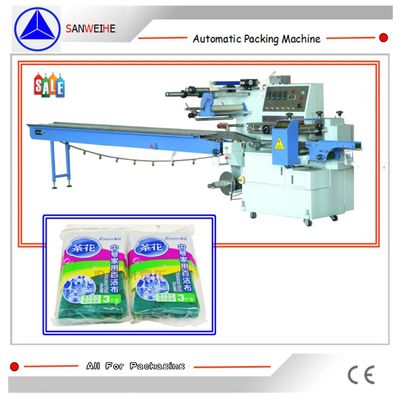

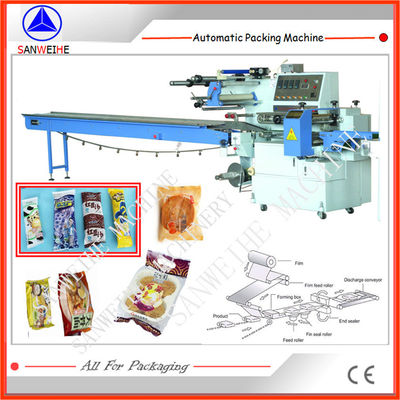

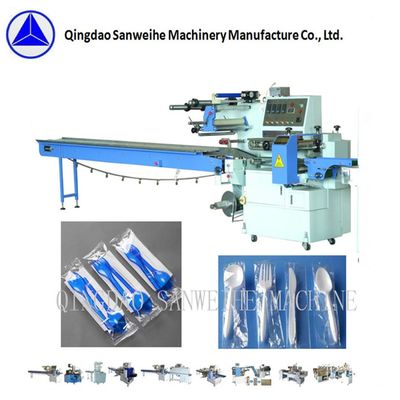

High-speed pillow shape flow wrapping machine is suitable for packaging various kinds of food, industrial products, plastic forks or knives
The features about the flow wrapping machine:

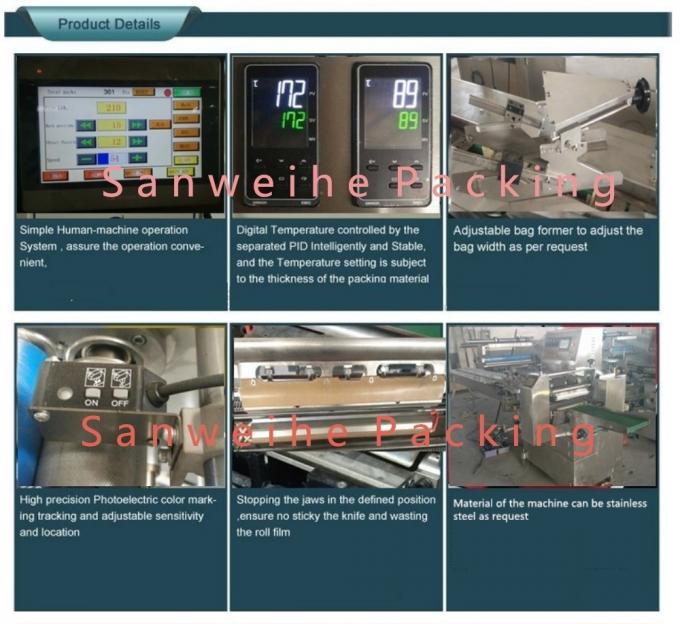

1. The main circuit is multi-point controlled by the PLC, accurate, reliable and with stable performance.
2. Adopting the frequency converter to step-less speed regulation.
3. The temperature control circuit is composed of intelligent temperature controller, constant energy relay and other components, enables the machine with accurate temperature control, direct display and convenient setting. The electro-magnetic realizes the multi-point tracking and detection, enables a precise cutting position, that means accurate pack length and reliable packing speed control.
4. Forward and reverse intelligent tracing is used to increase the tracing precision and reduce tracing time, in order to reduce the amount of waste products.
5 The machine will be stopped at a predetermined position when stopped, so to prevent film from burning-up.
6. According to the customer's demands, we could add auxiliary equipments: Date and batch number printer, various automatic feeding machines, film winding device chip edge, angle-folding mechanism of packing bag etc.
| Parameters of the Flow Wrapping Machine |
| Max width of film |
450mm |
| Packaging range |
L:53~300mm, W:20~100mm H:5~70mm |
| Packing speed |
30-2200Bag/min |
| Category of film |
Heat-melt-cut sealable film ike PAPER/PE, OPP/PE,OPP/AL/PE, PP/PE |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
4.6KW single phase 220V |
| Overall dimension L×W×H |
5700×1050mm×1700mm |
| Weight |
About 1000kg |
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable Flow Wrapping Machine for your specific need
3. Our professional workers will make the perfect Flow Wrapping Machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality Flow Wrapping Machine
F.A.Q.:
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as OPP/PE film, CPP/PE, OPP/ALU/PE
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
The spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
Problem, we will help you to solve the problem freely, we will also send the spare
Parts for replacement, of course the spare parts are not for free
