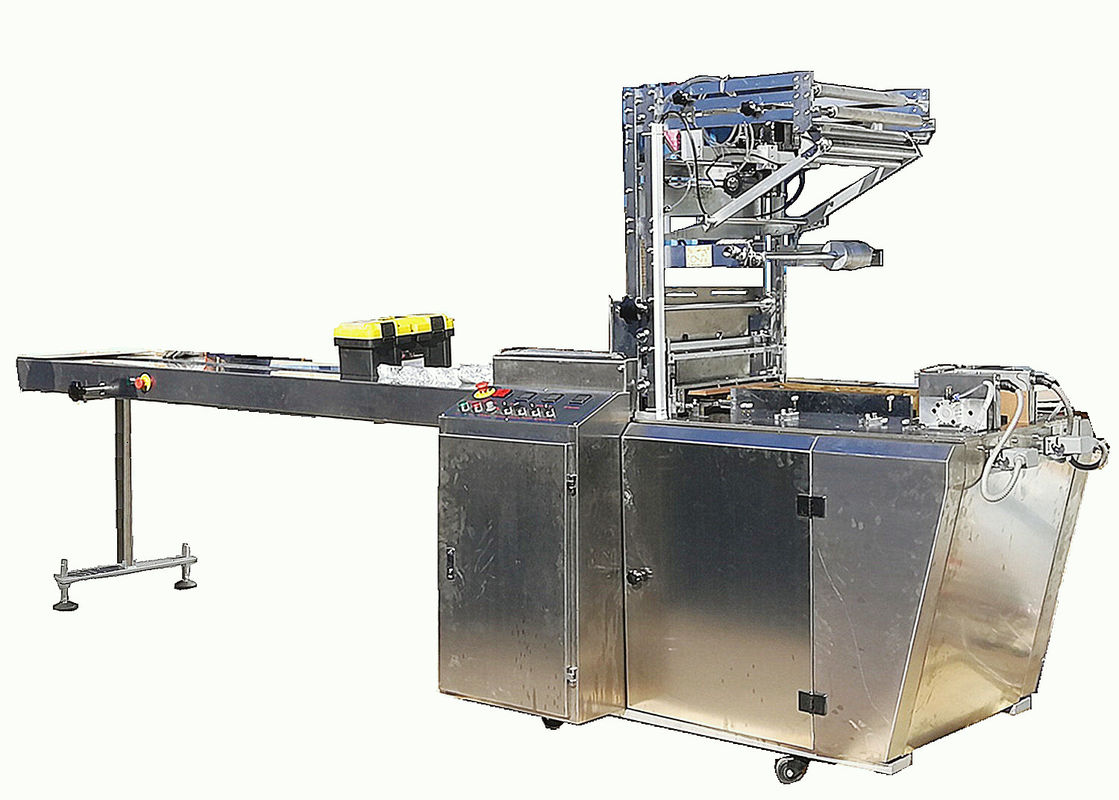

Over Wrapping Type Wafer Biscuit Automatic Packing Machine
Description of the Packing machine :
Without Tray Automatic Over wrapping packing machine is the biscuit packing machine that carries different types of products (e.g. round, rectangular, square, elliptical,angular) with different measurements by the help of its transporter and realizes packaging in the envelope form(End-folding type) by wrapping from above and sticking from the edges.
Features of the packing machine :
Easy tear strip and beautiful appearance.
Saving packing material and the box space.
Adoptingphoto-electrical eye control system ensures correctly cutting position.
Engine stops in case of overload, High safety function.
Comparing with the manual sealing, could saving 10-15 laborcost
Capacity: 45-50 packet/minute. (capacity varies depending on product type and packing material)
Infeed conveyor and chains are made of stainless steel
Most parts on the machine are stainless steel
All stroke adjustments can be done.
Speed adjust is done by digital device
Max diameter 90mm biscuits can be packed.
Circular, rectangular, square and oval products can be packed.
Single cutting blade.
Photocell hit system of machine is done by pneumatic piston
Cams are hardened after grinding.
Packing Samples of the packaging machine:
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packaging machine for your specific need
3. Our professional workers will make the perfect packaging machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packaging machines
FAQ:
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is double sides heat sealable film
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free
Main technical parameters of packaging machine
|
| Machine measurement(L*W*H): |
4800MM*1100MM*1850MM |
| Weight: |
900kg |
| Total power: |
4kw |
| Feeding voltage: |
220V. 50Hz |
| Power: |
3kw |
| Stream drawn: |
12A |
| Lengthwise heater power: |
600W |
| Horizontal seal heater power: |
6*200W |
| Engine power: |
1.1kw |
| Engine voltage: |
3phase 220V |
| Packing speed: |
10-45 bags/min |
