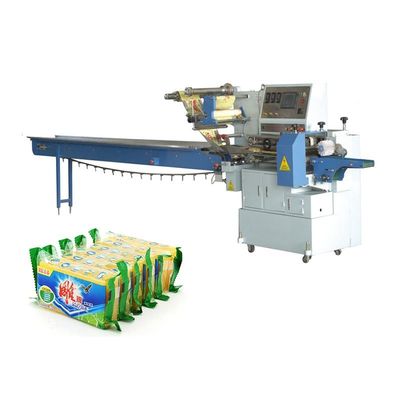

SWSF-720 Horizontal High Speed Automatic Flow Pack Wrapping Machinery
This Flow pack wrapping machinery is a kind of horizontal flow wrapping machinery. The wrapping Machinery adopts servo motors, improves the control accuracy, reduces waste of packing material.
What Is Horizontal Flow Wrapping Packing Machinery?
The drawing below shows a horizontal flow wrapping machinery:
The flow wrapping machinery packages products by wrapping it in film. The flow wrapping machinery has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
The Constituent Parts of Horizontal Flow Wrapping Packing Machinery
The packing wrapping machinery packages product by wrapping it in film. The packing wrapping machinery has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Application of automatic flow pack wrapping machinery:
Piece-product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, ice trowels, cotton wool.
Group packing:
Waffles, meat chops, bakery, soaps, sponges, biscuits with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing knife, napkin, toothpick, etc.
Features of the automatic flow pack wrapping machinery:
1.Flow Pack Wrapping machinery is based on PLC controlling, more stable and reliable system with less trouble.
2.Digital display with package length,speed and temperature adjustableseparately,easy and accurate to use.
3.Two-way tracking for accurate sealing and cutting fo patterns.
4.Position shutdown and automatic opening-closing device for longitudinalsealing ,ensuring no harm to the packing films.
5.Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.
6.Packing parameter with many products could be set, Drawing out the relevant data from memory and the machine will be operate according to these data.
Parameters of the automatic flow pack wrapping machinery
| |
| Max width of film |
450mm |
| Packaging range |
L:53~300mm, W:20~100mm, H:5~70mm |
| Packing speed |
30-180Bag/min |
| Category of film |
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
4.6KW single phase 220V |
| Overall dimension L*W*H |
5700mm*1050mm*1700mm |
| Weight |
About 1000kg |
Packing Samples of the flow pack wrapping machinery:
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable flow pack wrapping machinery for your specific need
3. Our professional workers will make the perfect flow pack wrapping machinery for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality flow pack wrapping machines
