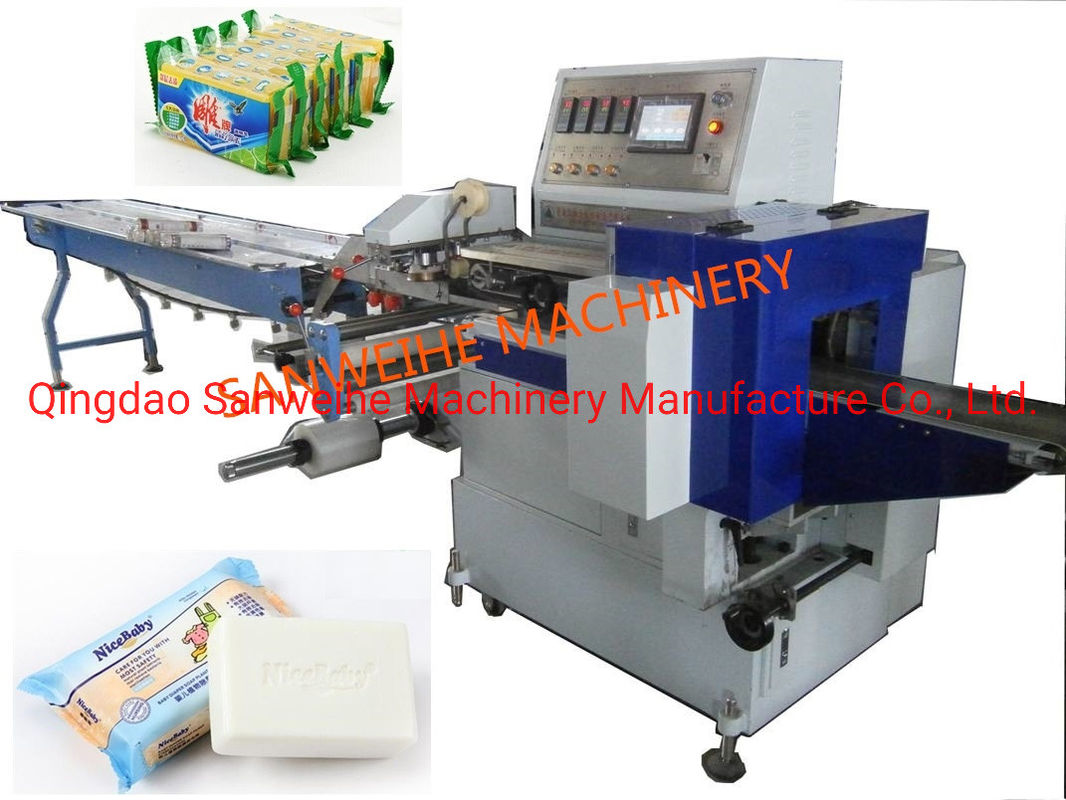

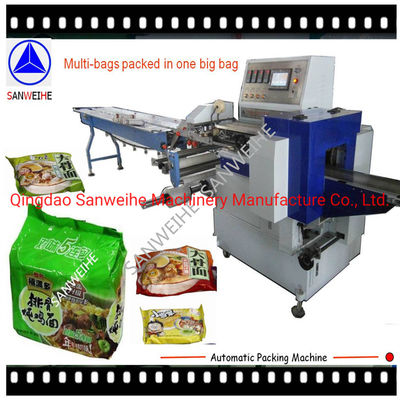

Reciprocating Type (Box Motion) Packing Machine is Specially designed for large product and heavy duty film packaging, this packing machine has a height of 120 mm, a width of 250 mm, and a packaging film width of 720 mm, The box motion makes the dwell time of film sealing longer so that the seal is much tight and firm than normal rotary sealing.
| |
SWWF-590 |
SWWF-800 |
| Film width |
Max 590mm |
Max 800mm |
| Bag length |
120-450mm |
120-450mm |
| Bag width |
50-160mm |
50-200mm |
| Product height |
10-80mm |
10-110mm |
| Film roll diameter |
Max 320mm |
Max 320mm |
| Packaging speed |
30-80bag/min |
20-60bag/min |
| Packaging materials |
OPP, PVC, OPP/CPP, PT/PE ALU-FILM |
OPP, PVC, OPP/CPP, PT/PE ALU-FILM |
| Power |
220V, 50/60Hz, 3.6KW |
220V, 50/60Hz, 3.6KW |
| Machine size |
(L)3960× (W)830× (H)1750 |
(L)3960× (W)930× (H)1750 |
| Machine weight |
860Kg |
920Kg
|
What is horizontal flow wrapping packaging machinery?
The flow wrapping machinery packages product by wrapping it in film. The flow wrapping machinery has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.

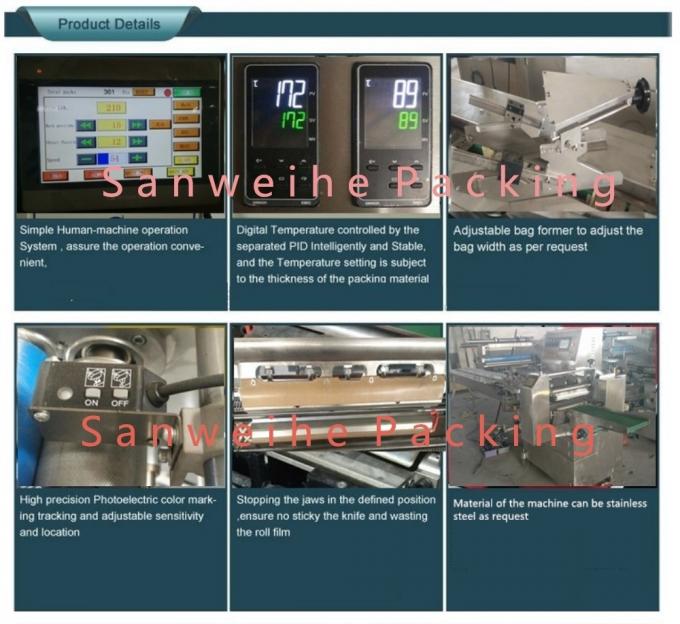

Features Of the Packing machine:
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Human-machine interface, easy parameter setting.
3. Self failures diagnosis, clear failure displaying.
4. High sensitivity photocell, digital input of cutting and sealing position for extra accuracy.
5. Separate PID temperature control, suitable for packing different materials.
6. Reciprocating sealing makes the seal firmer, without wearing the cutters.
7. Sealing with gusseting device makes the bag better looking, improving the product level.
8. Positioning stopping function, not adhesive to cutters and no waste of packing films.
9. Simple driving system, more reliable and more convenient maintenance.
10. All controlled by software, convenient for adjusting and technical upgrading.
Applications of packing machine:

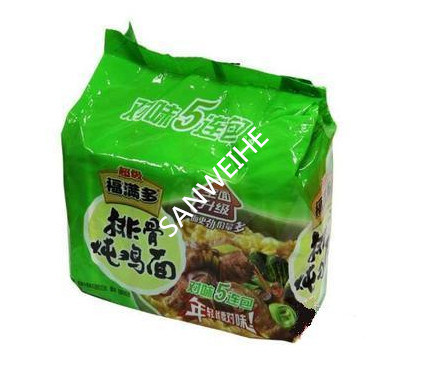

Applicable for packing various solid regular objects, such as mooncake, bread, biscuits, candies, snow cakes, custard cakes, chocolates, instant noodles, medicines, commodities, hardwares, carton, trays and etc.
Main Parameters of the packing machine:
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machine
Services of our company:
We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We provide related spare parts of our packing machine
We also provide customized products according to customer's request
