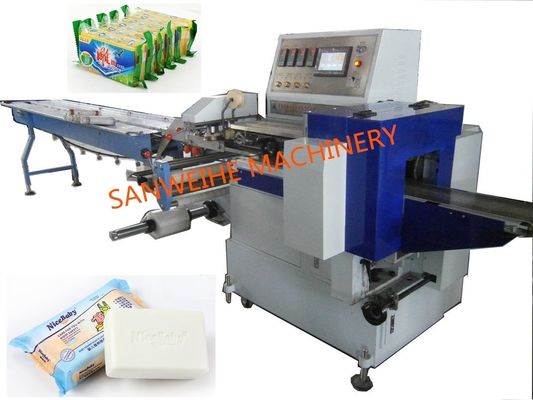

Swwf 590 Horizontal Flow Wrap Machine CPP Reciprocating Pvc Packing Machine

Reciprocating Type (Box Motion) Packaging Machine is Specially designed for large product and heavy duty film packaging, this packaging machine has big packaging dimension: height:120 mm, width of 250 mm, and packaging film width :720 mm, The box motion makes the dwell time of film sealing longer so that the seal is much tighter and more firmer than normal rotary sealing packaging machine.

Specification of the Packaging machine:

What Is  Flow Wrapping Packaging Machine?

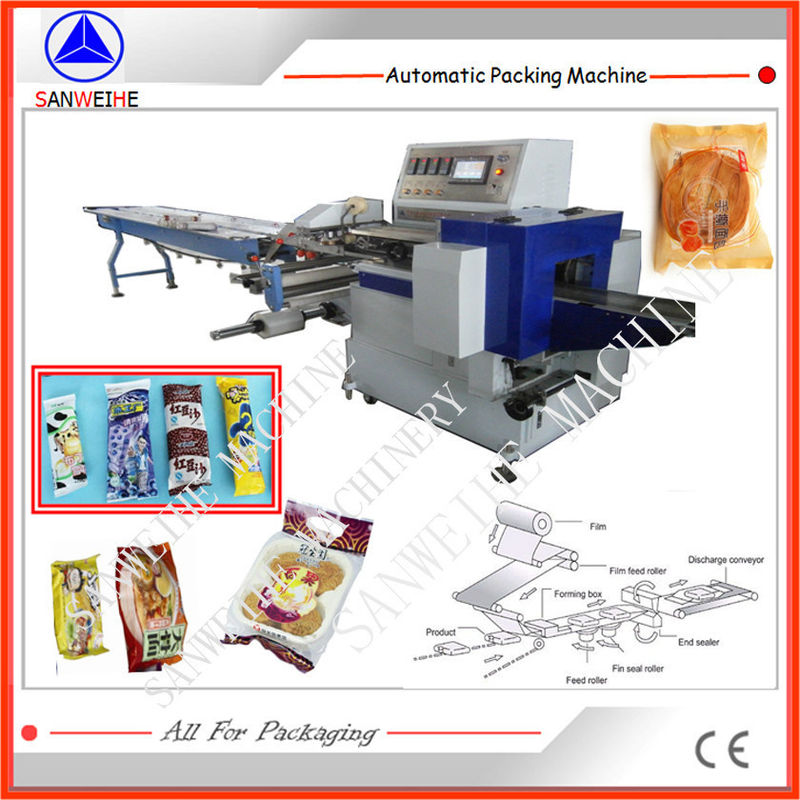

The drawing below shows a horizontal flow wrapping machine in motion:

The flow wrapping machine packages product by wrapping it in film. The flow wrapping machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.

Features Of the Packaging machine:

1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Human-machine interface, easy parameter setting.
3. Self failures diagnosis, clear failure displaying.
4. High sensitivity photocell, digital input of cutting and sealing position for extra accuracy.
5. Separate PID temperature control, suitable for packing different materials.
6. Reciprocating sealing makes the seal firmer, without wearing the cutters.
7. Sealing with gusseting device makes the bag better looking, improving the product level.
8. Positioning stopping function, not adhesive to cutters and no waste of packing films.
9. Simple driving system, more reliable and more convenient maintenance.
10. All controlled by software, convenient for adjusting and technical upgrading.

Constituent Parts of Horizontal Flow Wrapping Packing Machine

The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.

Applications of packaging machine:

Applicable for packing various solid regular objects, such as mooncake, bread, biscuits, candies, snow cakes, custard cakes, chocolates, instant noodles, medicines, commodities, hardwares, carton, trays and etc.
