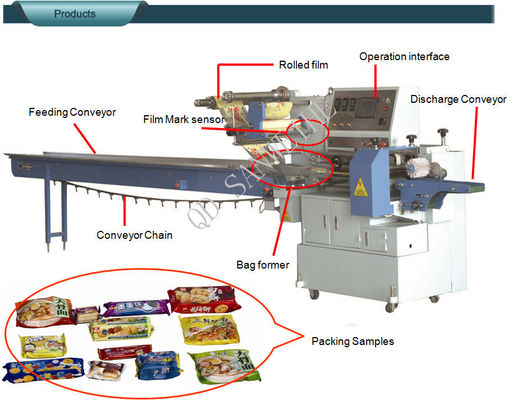

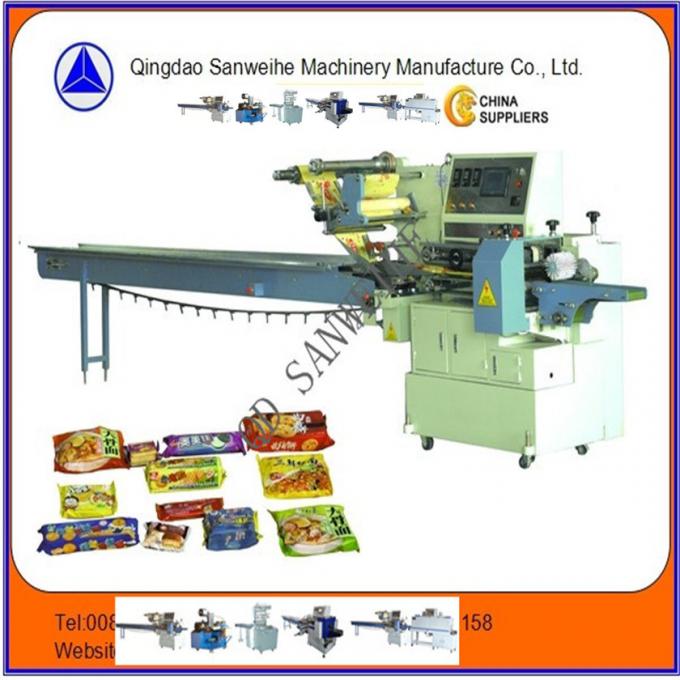

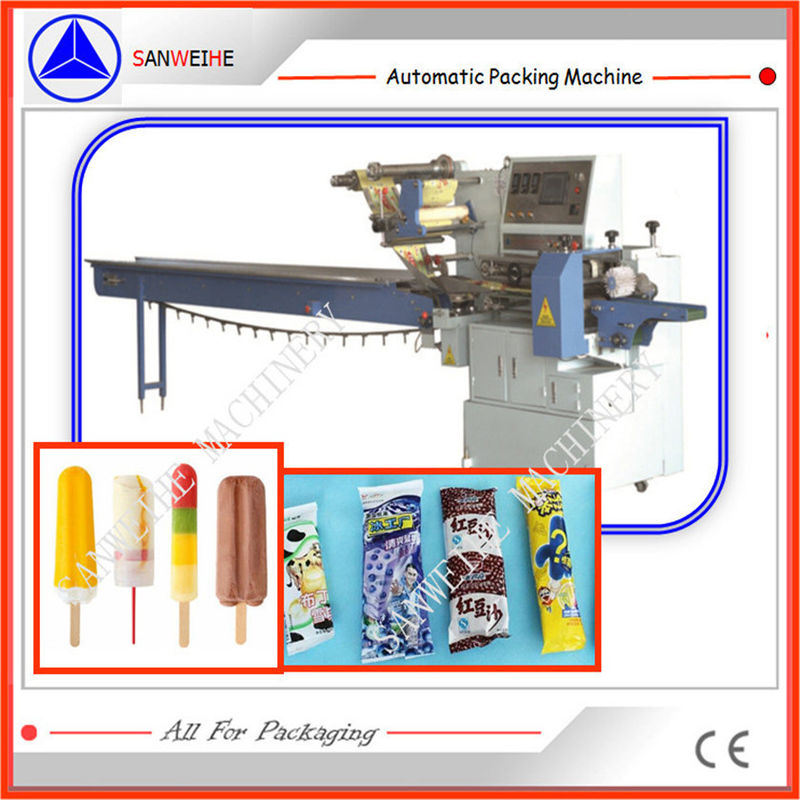

Washing Foam, Instant Noodles, Ice Cream Bar, Moon Cakes, Biscuits, Bread,Ice Lolly Automatic Packing Machine is a kind of horizontal packing machine, it is kind of pillow-shaped bag packing machine, it adopts two servo motors, improved the control accuracy, reducing waste.It is Suitable for packing ice cream bar, ice lolly, instant noodles, moon cakes, biscuits, bread, meat food, frozen food, toilet soap, medicine tablets, plastic transfusion, incense coil, industrial products, plastic forks and knives etc.
Application of automatic packing machine:
Piece-product packing:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, ice trowels, cotton wool.
Group packing:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing fork, knife, napkin, toothpick, etc.
Features of the automatic packing machine:
Packing machine is based on PLC controlling, more stable and reliable system with less trouble.
Digital display with package length,speed and temperature adjustableseparately,easy and accurate to use.
Two-way tracking for accurate sealing and cutting fo patterns.
Position shutdown and automatic opening-closing device for longitudinalsealing ,ensuring no harm to the packing films.
Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.
Packing parameter with many products could be set, Drawing out the relevant data from memory and the machine will be operate according to these data.
| Parameters of the automatic packing machine |
| Max width of film |
450mm |
| Packaging range |
L:53~300mm, W:20~100mm, H:5~70mm |
| Packing speed |
30-110Bags/min |
| Category of film |
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
4.6KW single phase 220V |
| Overall dimension L×W×H |
5700mm×1050mm×1700mm |
| Weight |
About 1000kg |
Packing Samples of the packing machine:-----------------------------------------------------------------------------------
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machines
