Description about the Packing machine :

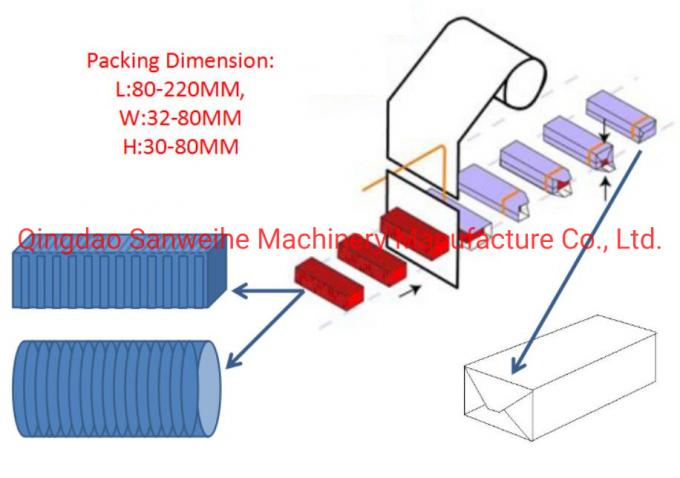

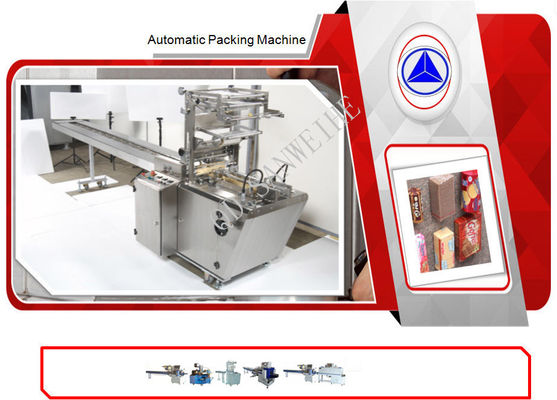

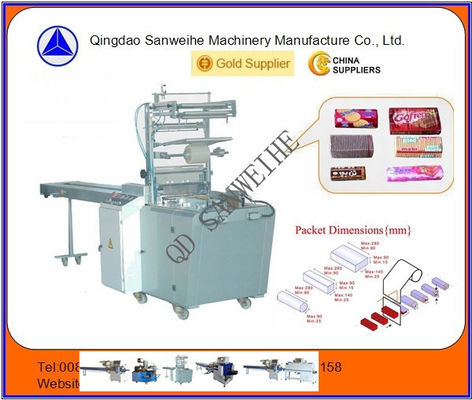

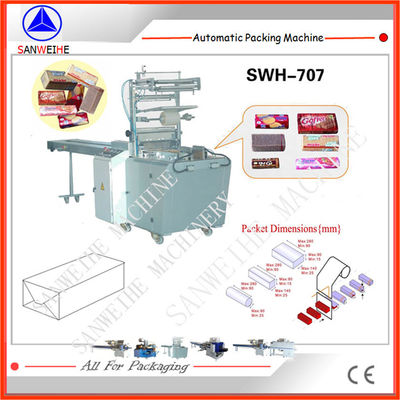

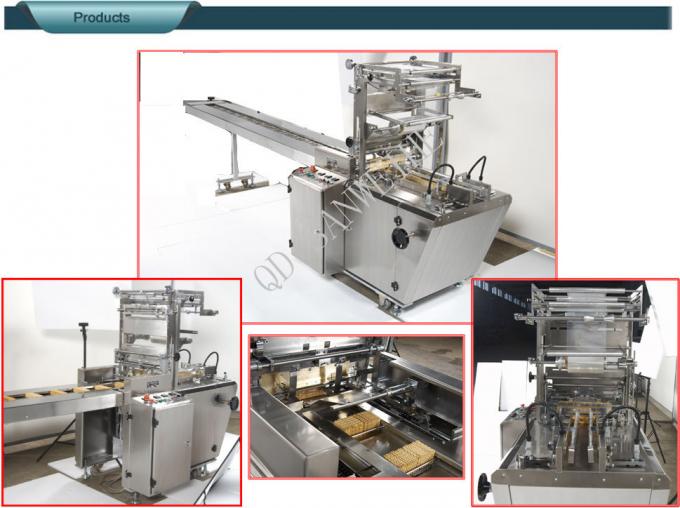

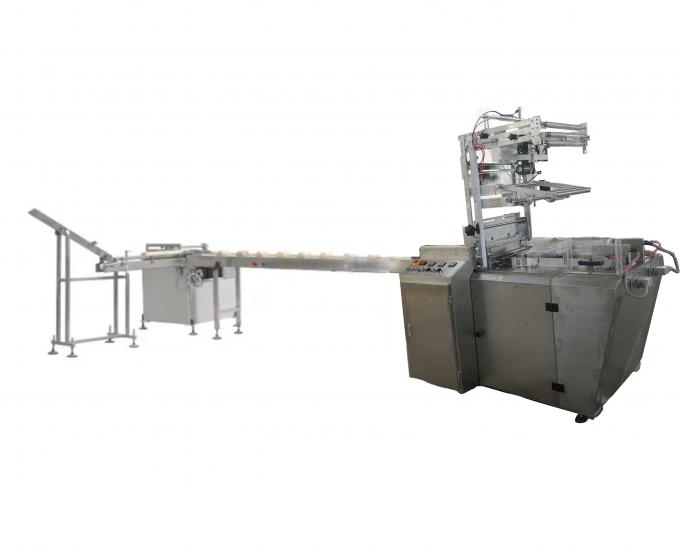

Without Tray Automatic Over wrapping package machine is the biscuit packing machine that carries the different types of products (e.g. round, rectangular, square, elliptical,angular) with the different measurements by the help of its transporter and realizes packaging in the envelope form(X-folding type) by wrapping from above and sticking from the edges.
Features about the packing machine :
Easy tear strip and beautiful appearance.
Saving packing material and the box space.
Adoptingphoto-electrical eye control system ensures correctly cutting position.
Engine stops in case of overload, High safety function.
Comparing with the manual sealing, could saving 10-15 laborcost
| Main technical parameter of the packing machine |
| Machine measurement(L*W*H): |
4800MM*1100MM*1850MM |
| Weight: |
900kg |
| Total power: |
4kw |
| Feeding voltage: |
220V. 50Hz |
| Power: |
3kw |
| Stream drawn: |
12A |
| Lengthwise heater power: |
600W |
| Horizontal seal heater power: |
6*200W |
| Engine power: |
1.1kw |
| Engine voltage: |
3phase 220V |
| Packing speed: |
5-40bags/min |

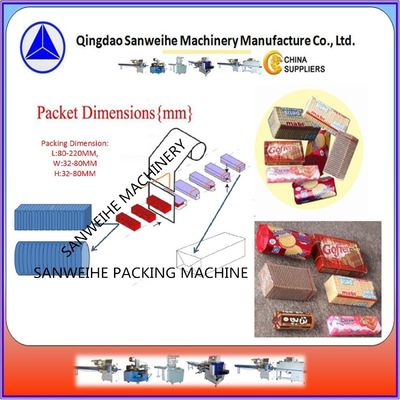

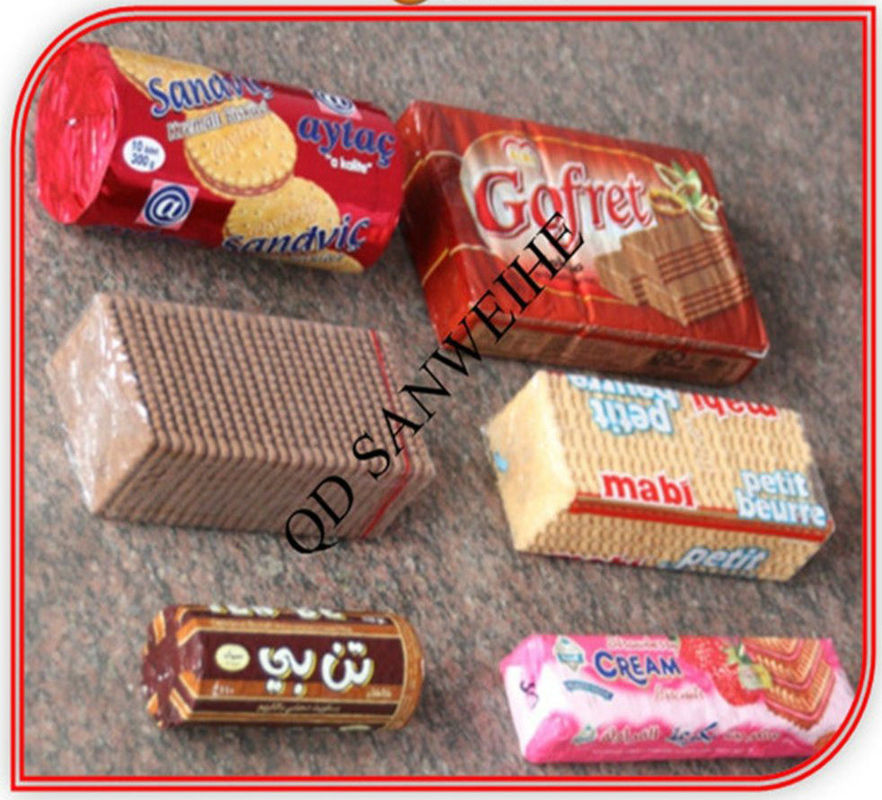

Packing Samples:----------------------------------------------------------------------------------------------------------
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products
FAQ:
Q: When you can finish the packaging machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the packaging machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is double sides heat sealable film
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare parts for replacement, of course the spare parts are not for free
