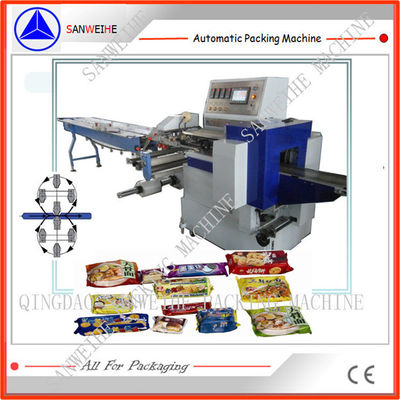

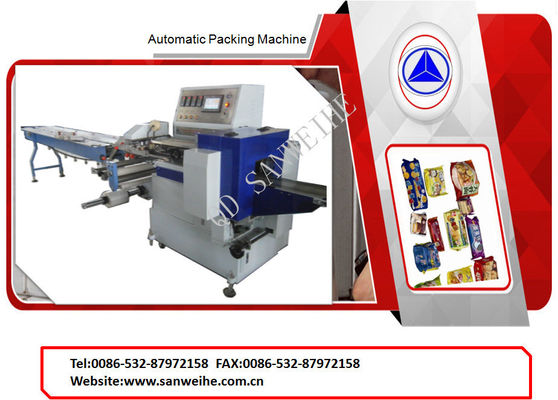

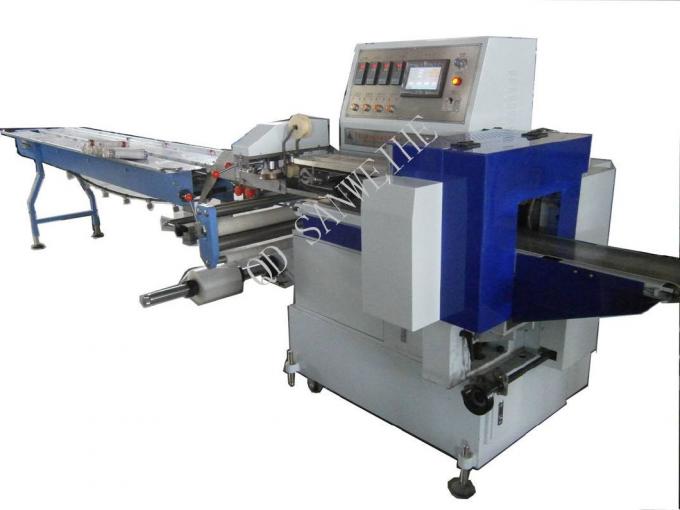

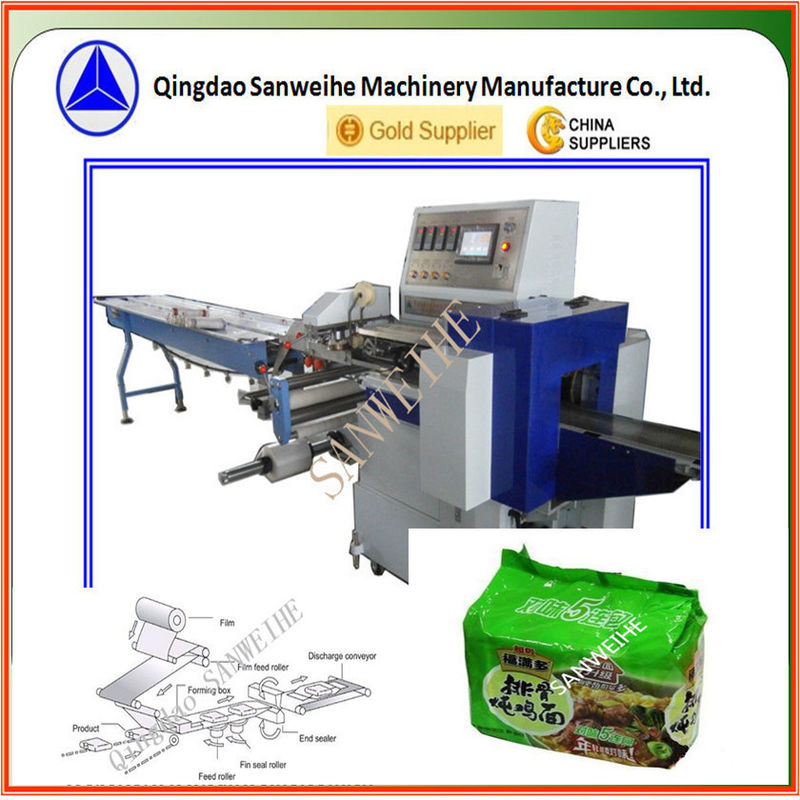

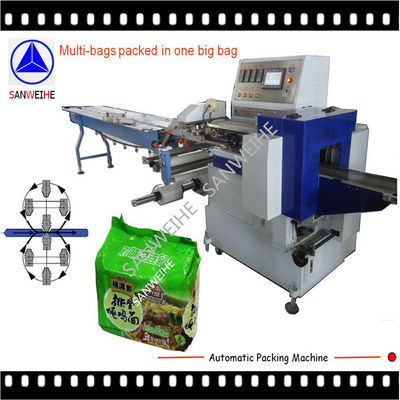

SWWF-590 Reciprocating Type (Box Motion) Packaging Machine is Specially designed for large product and heavy duty film packaging, this packaging machine has a height of 120 mm, a width of 250 mm, and a packaging film width of 720 mm, The box motion makes the dwell time of film sealing longer so that the seal is much tight and firm than normal rotary sealing.
Features Of the packaging machine:
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Human-machine interface, easy parameter setting.
3. Self failures diagnosis, clear failure displaying.
4. High sensitivity photocell, digital input of cutting and sealing position for extra accuracy.
5. Separate PID temperature control, suitable for packing different materials.
6. Reciprocating sealing makes the seal firmer, without wearing the cutters.
7. Sealing with gusseting device makes the bag better looking, improving the product level.
8. Positioning stopping function, not adhesive to cutters and no waste of packing films.
9. Simple driving system, more reliable and more convenient maintenance.
10. All controlled by software, convenient for adjusting and technical upgrading.
Applications of the packaging machine:
Applicable for packing various solid regular objects, such as mooncake, bread, biscuits, candies, snow cakes, custard cakes, chocolates, instant noodles, medicines, commodities, hardwares, carton, trays and etc.
Parameters of the packaging machine:
| |
SWWF-590 |
SWWF-800 |
| Film width |
Max 560mm |
Max 760mm |
| Bag length |
120-450mm |
120-450mm |
| Bag width |
50-160mm |
50-200mm |
| Product height |
10-80mm |
10-110mm |
| Machine weight |
860Kg |
920Kg |
| Packaging speed |
20-80bag/min |
20-80bag/min |
| Packaging materials |
OPP, PVC, OPP/CPP, PT/PE ALU-FILM |
OPP, PVC, OPP/CPP, PT/PE ALU-FILM |
| Power |
220V, 50/60Hz, 3.6KW |
220V, 50/60Hz, 3.6KW |
| Machine size |
(L)3960× (W)830× (H)1750 |
(L)3960× (W)930× (H)1750 |
| |
|
|
Packing Samples:
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products
FAQ:
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as OPP/PE film,CPP/PE, OPP/ALU/PE
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free
Our Services
We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine
We also provide customized products according to customer's request
