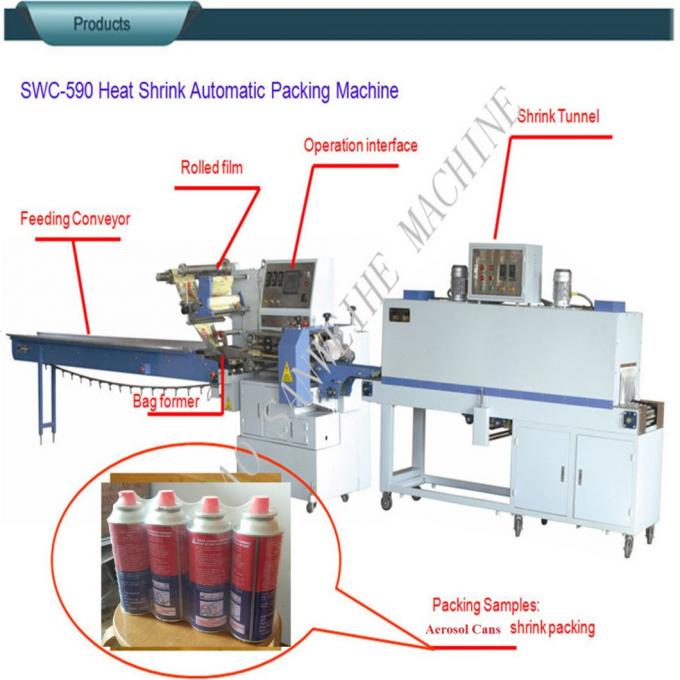

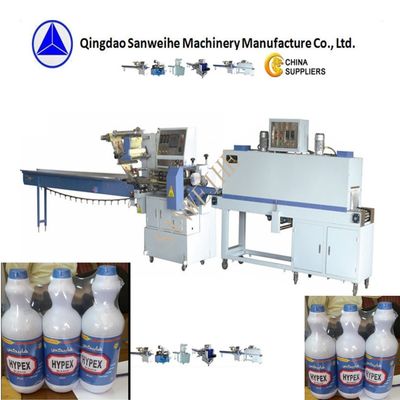

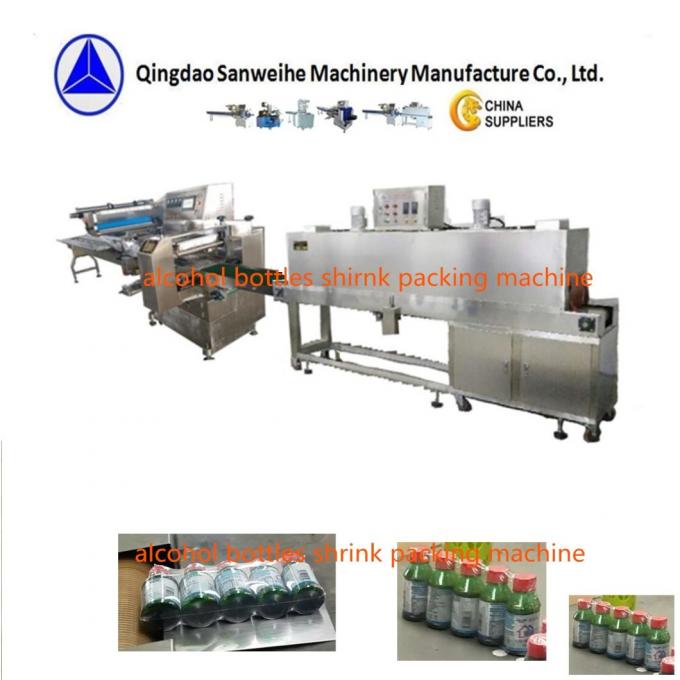

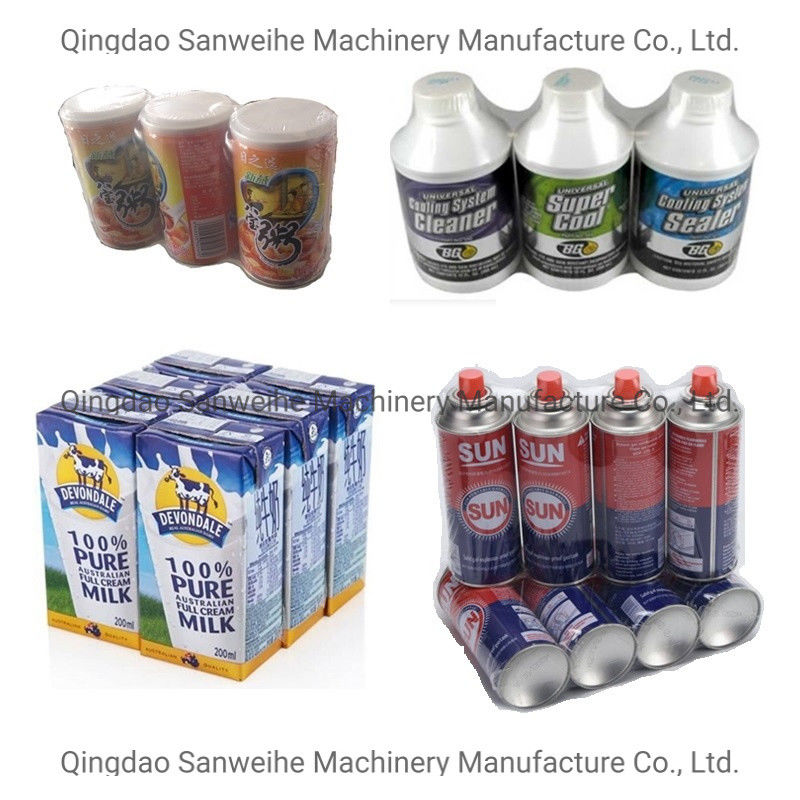

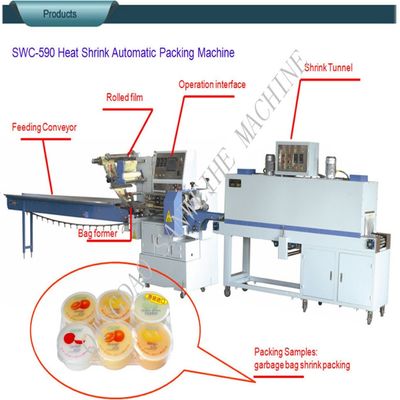

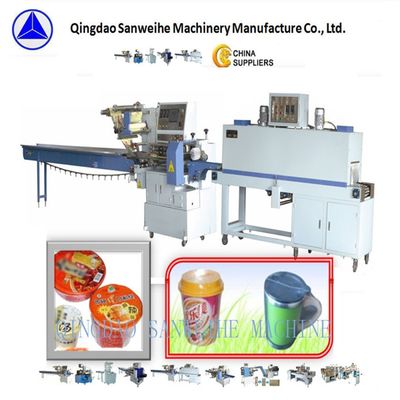

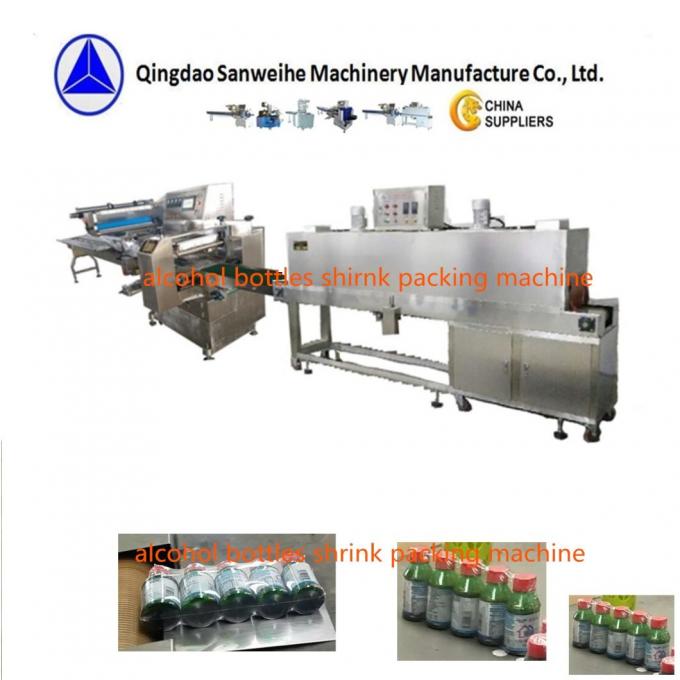

Automatic Shrink packing machine is suitable for single unit and shrink packed products and collective shrink packed products, such as bowl instant noodles, card, food boxes, plastic bottles, incense coils, fruit-milk bottles, milk boxes, daily necessities, etc. It is kind of automatic shrink packing machine. We have semi-automatic and fully automatic packing machines. We have button controlled and touch screen controlled packing machine
The features of the shrink packing machine:
1. Single packing or many in group packing;
2. Safety anti-cutting clutch equipment and no harm to the goods
3. Waste recycling device could be available packing in esthetic.
4. PLC control for a more stable and reliable system with less trouble.
5. Digital display with package length, speed and temperature adjustable separately, easy and accurate for use.
6. The different conveying types, ensuring no moving or reversal of the packing goods.
7. The design of mechanical structure is simple and reasonable, which makes the operation easy and adjustment convenient.
Optional Equipment: auotmatic grouping/unscramble equipment
| Main Technical Parameters |
| Max width of film |
590mm |
| Packaging range |
L:50~400mm,W:5~200mm, H:1~110mm |
| Packing speed |
30~100Bags/min |
| Category of film |
POF or other heat shrinkable film |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
21KW sngle phase 220V |
| Overall dimension L×W×H |
7400×1250×1800mm |
| Weight |
About 1300kg |
Our Services
We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine
We also provide customized products according to customer's request
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machines
FAQ:
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as OPP/PE film,CPP/PE, OPP/ALU/PE
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free
