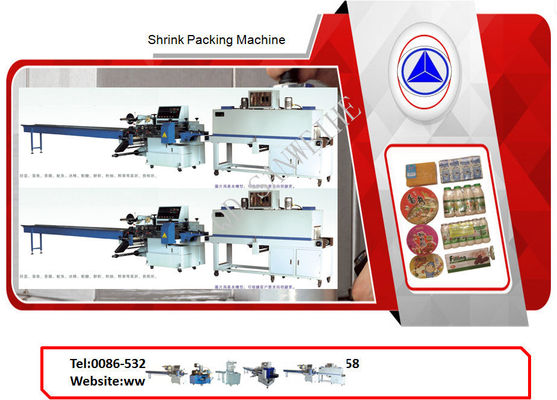

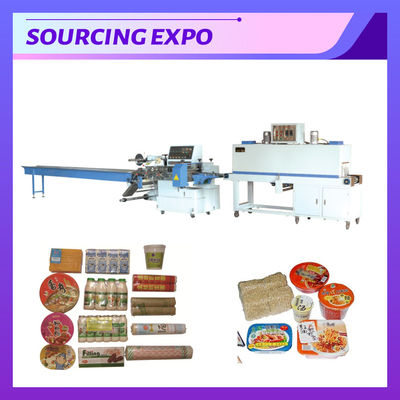

SWF-590 SWD-2000 Automatic Heat Shrink Packing Machine
Application of the shrink wrapping packing machine
Shrink packing machine is a kind of horizontal flow wrapping packing machine, it is suitable for single unit and shrink packed products, such as bowl instant noodles, card, food boxes, plastic bottles, incense coils and for collective shrink packed products like fruit-milk, daily necessities, etc. .

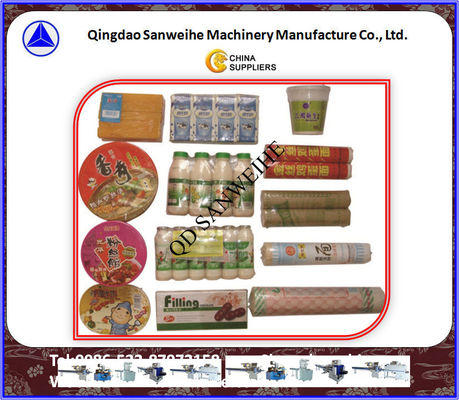

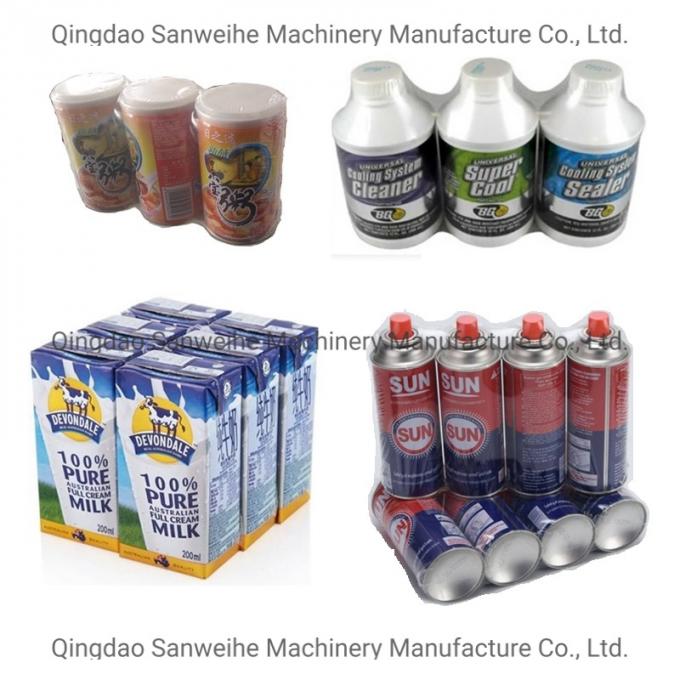

Packing Samples of the shrink wrapping packing machine:

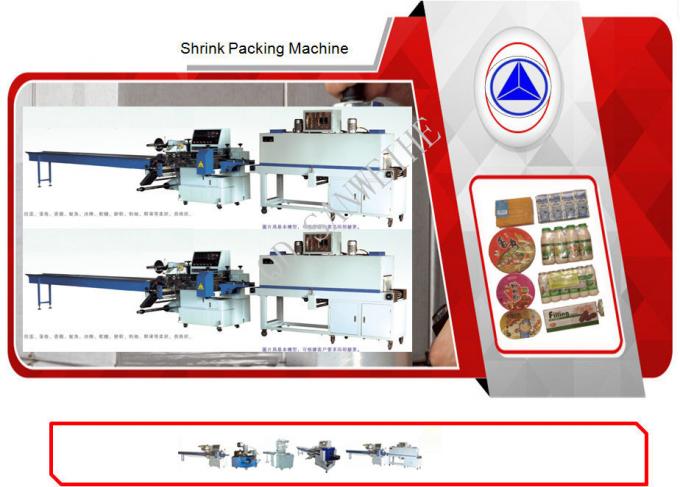

Available equiment:
We have both the button controlled shrink packing machine and PLC touch screen controlled shrink packing machine.

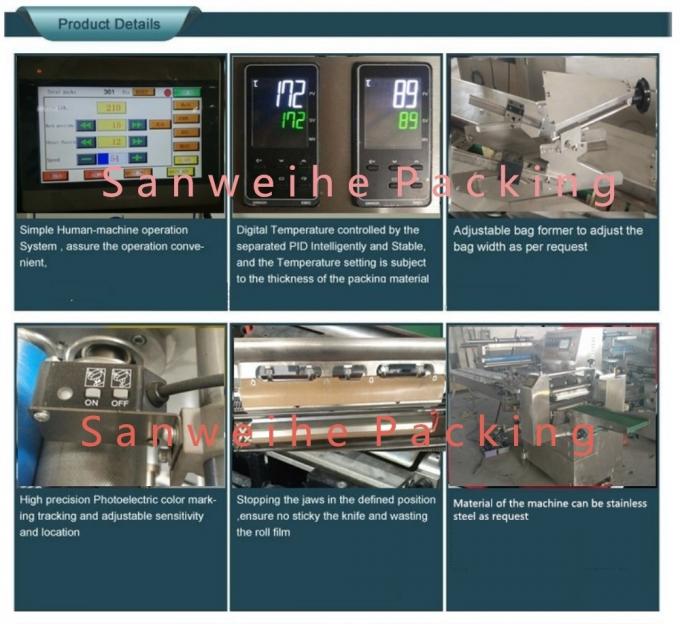

Features of the shrink wrapping packing machine:---------------------------------------------------
shrink wrapping packing machine, reduce the pollution ,save cost.
Using OPP, POF, PVC shrink film. It can automatically finish the all processing of bag making-filling sealing-cutting.
Function of digital indicator which shows the size of film, packing speed, capacity and temperature etc.
PLC to be adopted ,reduces the mechanical contact and makes the system more stable, reliable and easier to maintenance.
The adjusting of frequency converter is convenient and easy.
The photoelectric sensor is used intesting color mark and controls the double-tracing automatically.
| The parameter of the shrink wrapping packing machine |
| Max width of film |
590mm |
| Packaging range |
L:50~400mm, W:5~200mm, H:1~110mm |
| Packing speed |
30~150Bag/min |
| Category of film |
Poly film, Aluminum foil poly film |
| Power of main motor |
1.5KW |
| Power of electrical |
2.5KW |
| Total power |
21KW 1phase 220V |
| Overall dimension L×W×H |
5700×1250×1800mm |
| Weight |
About1000kg |
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machine
FAQ: shrink wrapping packing machine
Q: When you can finish the shrink wrapping packing machine at earliest. Please inform. As we need the packing machine ASAP.
A: We can finish the packing machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as POF, PVC,OPP and PE film
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free
