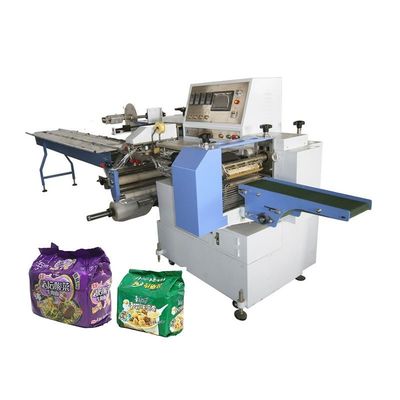

SWF-800 Wider film Automatic Flow wrapping Packing Machinery
Packing Process:Product is placed on the in-feed conveyor. As the in-feed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a fin-seal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the end-seals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
What is Horizontal Form-fill-seal Packing Machine?
The drawing below shows a horizontal form-fill-seal packing machine:
The horizontal form-fill-seal packing machine packages product by wrapping it in film. The horizontal form-fill-seal packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Application of Horizontal Form-fill-seal Packing Machine
Single Piece product packaging:
Bread, chocolate en-robed cheese bar, trowel, food box etc.
Group packaging:
Instant Noodles,Waffles, meat chops, bakeries, etc.
Constituent Parts of Horizontal Form-fill-seal Packing Machine
The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Wrapping Packing Process of Horizontal Form-fill-seal Packing Machine
Parameters of Horizontal Form-fill-seal Packing Machine
|
Max film width
|
800mm
|
|
Packing Sizes
|
L:50~600mm, W:20~220mm H:5~110mm
|
|
Packing Speed
|
30~80bags/min
|
|
Packing material
|
Poly film, Aluminum foil poly film
|
|
Power Consumption
|
4.7KW Single Phase 220V
|
|
Machine sizes
|
LxWxH:5700×1250mm×1700mm
|
|
Machine weight
|
About 1200kg
|
Features of Horizontal Form-fill-seal Packing Machine
◆ Adopting the PLC control for a more stable and reliable system with less trouble.
◆ Digital display with packing length, speed and temperature adjustable separately, easy and accurate for use.
◆ Two-way tracking for accurate sealing and cutting Position
◆ The main technical parameter for film feeding from below flow automatic packing machine
Auxiliary equipment for Horizontal Form-fill-seal Packing Machine
1,Date code printer
2,Automatic feeder
3,Euro slot or round hole can be made
