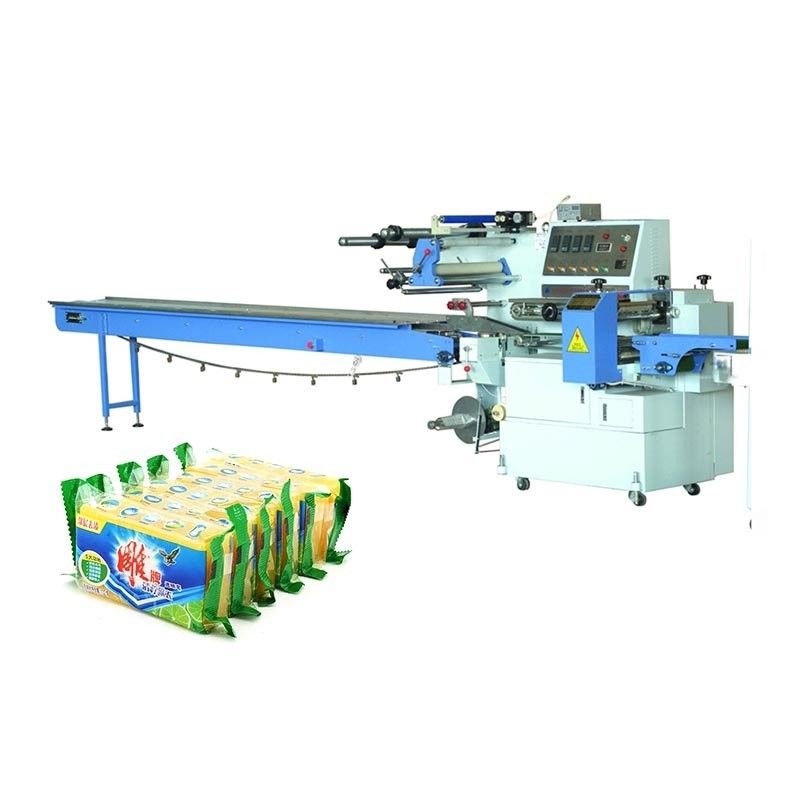

SWA-450 Series Automatic Flow Wrapping Packaging Machine
The packing machine packages product by wrapping it in film. The packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
What Is Horizontal Flow Wrapping Packaging Machine?
The drawing below shows a horizontal flow wrapping machine in motion:
The flow wrapping machine packages product by wrapping it in film. The flow wrapping machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Application of Horizontal Flow Wrapping Packaging Machine
Washing foam, Popsicle, instant noodles, ice cream bar, moon cakes, biscuits, bread, meat food, frozen food, toilet soap, medicine tablets, plastic transfusion, incense coil, industrial products, plastic forks and knives etc.
Packing Samples of Horizontal Flow Wrapper:

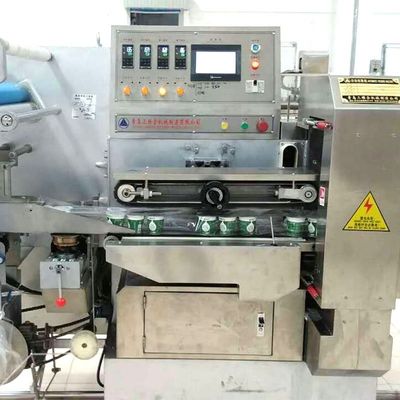

Constituent Parts of Horizontal Flow Wrapping Packaging Machine
The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Why choose us
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products
Parameters of Horizontal Flow Wrapping Packaging Machine
|
Max width of film
|
450mm
|
|
Packaging range
|
L53~300W20~100 H5~70mm
|
|
Packing speed
|
30-2200Bag/min
|
|
Category of film
|
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE
|
|
Power of main motor
|
1.5KW
|
|
Power of electrical
|
2.5KW
|
|
Total power
|
4.6KW single phase 220V
|
|
Overall dimension L×W×H
|
5700×1050mm×1700mm
|
|
Weight
|
About 1000kg
|
Features Of Flow Wrapping Packaging Machine
1.The main circuit is multi-points PLC control, accurate, reliable and with stable performance.
2.Adopting the frequency converter to step-less speed regulation.
3.Accurate temperature control, direct display and convenient setting. Accurate pack length and reliable packing speed.
4.Forward and reverse intelligent tracing is used to increase the tracing precision and reduce tracing time, in order to reduce the amount of waste products.
5.The machine will be stopped at a predetermined position when stopped, so to prevent film from burning-up.
Auxiliary Equipment for Flow Wrapping Packaging Machine
1.Date code printer
2.Automatic feeder
