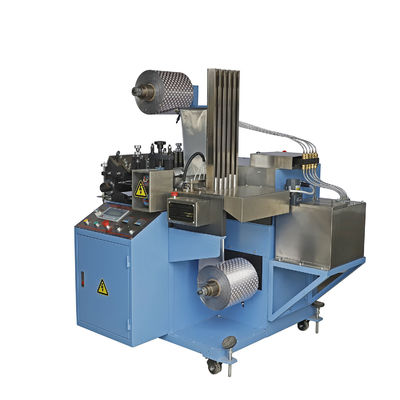

SWW-240-6 Mosquito Repellent Mat Automatic Sealing and Packing Machine with Alumnium Film
The mosquito repellent mat packing machine is suitable for packaging mosquito mat. It is superior quality and timely delivery. The machine includes a complete production line from liquid dozing to strip packaging the mats and cutting the mat strips.The Packaging machine absorbes all other machine advantages and deleting their shortages. Packaging machine is with high speed and accurate liquid injection.
Product features of mosquito repellent mat packaging machine:
(1) The whole machine is controlled by PLC (40 points) of OMRON or MITSUBISHI, and speed is adopted Panasonic's frequency converter.
(2) The Pynamin Forte injection precision are high which deviation could be controlled within ± 5mg. Six pieces of paper are injected(30mg ~ 300mg) by six pumps separately. The pump is made of metal and has a long service life. Every pump could adjust slightly
(3) The qualified rates of products are high. Blank mats qualified rateshigher than 99.97%, impregnated mats qualified rates is higher than 99.96%, and the totally qualified rates is higher than 99.7%.
(4) With high producing efficiency, it could work stably at 480 ~ 630 tablets/minute.
(5) The long service life, low noise and highly accurate rotary cutting way are advanced and scientific. It has already replaced the previously traditional pressing cutting way. The functions are better than the Japan Queen Light machine.
(6) The shapes of end cutting are adopted electromagnetic clutch and could separate 1 to 100 rows randomly. You could have different choices according to the products to meet varies requirements.
(7)The detector function automatically stops the machine if a mat is wrapped without being injected, or it is wrapped without mat(selective).
The basic process of the mosquito repellent mat packing machine
1.The blank mats are stacked vertically by hand and automatically feed blank mats to the following section.
2.The blank mat is injected with a fixed amount of pynamin forte.

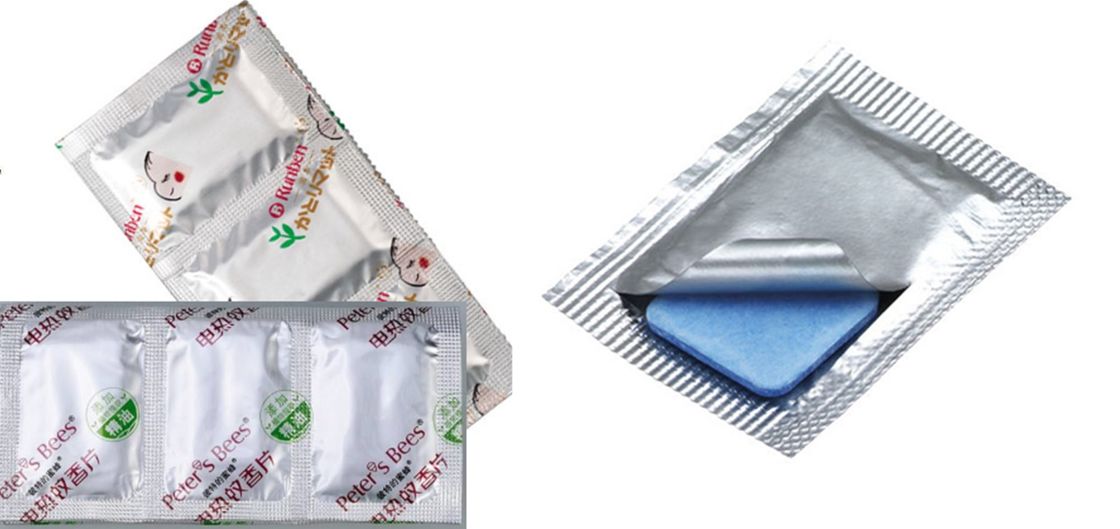

3.The impregnated mats are automaticlly wrapped by laminated film .
4. Lengthways cutting the laminated film and athwartships cutting the seal.
5.The laminated film is cut into 3 6,9,12,15,18 etc pieces of mats(adjustable according to the requirement of the customer)
Main Technical Parameters:
| Operation speed: |
About 480-630mats/min (variable) |
| Injection amount: |
About 30mg-300mg(variable) |
| Mat size: |
About 35x22x2.8mm |
| Packing film: |
Heat sealable laminated film, Width:235-240mm, 500-1000m/roll |
| Solution Tank: |
30 liters with agitation motor and heater(with temperature controller) |
| Heater: |
Seal roller :1.5KW, solution tank:300W |
| Cutting positon and method: |
Straight cutting and perforation(easy-tear zig-zag line) |
| Main driving motor: |
0.75kw and 3 phase |
| Power consumption: |
2.6KW |
| Machine weight and measurement: |
About 650kgs/nets, 900kgs/gorss and 4.5 cubic meters. |
Overseas customers:
Why choose us:
1. We are probably the only producer for the mosquito mat packing machine in China, if other company sell this machine, they should buy from us then resell to you
2.We are manufacture but not trade company.
3. We have professional staff who can advise you the suitable packing machine for your specific need.
4. Our professional workers will make the perfect packing machine for you.
5. Well trained and experienced staff will answer your inquiry timely.
6. We provide competitive price and fine quality packing machines.
F.A.Q:
Q:Does your machine dosage pump accurate in injection of chemical?
A:There are six pumps to adjust the six injection head,The dosage of our machine is very accurate, the tolerance could be controlled within±5mg
Q:Does your quality good for mats packing machine? Please advice. Which factories in china use your mats packing machine?
A:Our machines covers more than 95% of China market, so the quality of our mat packing machine is very good, you can use the machine for several years. Below are some companies use our machine in China:
1.Shantou Jinlong Mosquito Incense Industrial Co., Ltd. 2.Qinhuangdao Tzuray Pharmaceutical Co., Ltd 3.Tianjin earthchem Co., Ltd 4. Jiangsu Sanxiao Group Co., Ltd, 5.ZHEJIANG Zenden industrial CO., Ltd 6.Yi Wu Lan Jian Mosquito-Repellent Incense Factory ETC.
Q: Is the machine equipped with detection missing mat and liquid?
A: Yes the is machine equipped with detecting sensor of missing mat or liquid
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some problem, we will help you to solve the problem freely, we will also send the spare parts for replacement, ofcourse the spare parts are not for free
