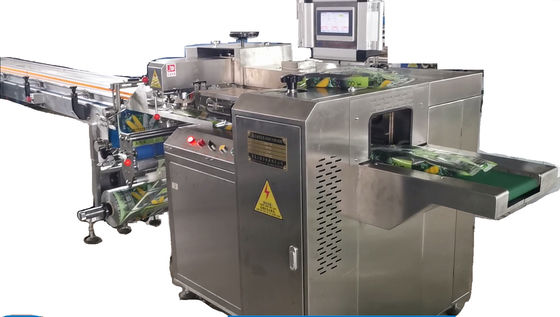

SWSF-590 Horizontal High Speed Automatic Packing Machinery Flow Wrapping Machine
This packaging machine is a kind of horizontal flow packing wrapping machine. The Packing wrapping Machine adopts servo motors, improves the control accuracy, reduces waste.
What Is Horizontal Flow Wrapping Machine?

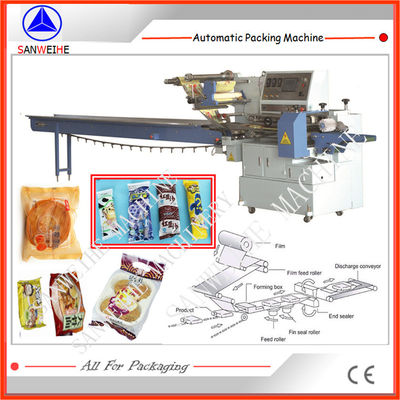

The drawing below shows a horizontal flow wrapping packing machine:
The flow wrapping packing machine packages product by wrapping it in film. The flow wrapping packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Constituent Parts of Horizontal Flow Wrapping Packing Machine
The wrapping packing machine packages product by wrapping it in film. The wrapping packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Application of automatic flow wrapping packing machine:
Piece-product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, ice trowels, cotton wool.
Group packing:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.
Features of the automatic flow wrapping packing machine:
- Flow wrapping Packing machine is based on PLC controlling, more stable and reliable system with less trouble.
- Digital display with package length,speed and temperature adjustableseparately,easy and accurate to use.
- Two-way tracking for accurate sealing and cutting fo patterns.
- Position shutdown and automatic opening-closing device for longitudinalsealing ,ensuring no harm to the packing films.
- Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.
- Packing parameter with many products could be set, Drawing out the relevant data from memory and the machine will be operate according to these data.
Packing Samples of the flow wrapping packing machine:
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality flow wrapping packing machines
